Weidmuller 1939600000 KLIPPON K3 VMQ
- MPN: 1939600000
- PPN: WDM-1939600000
CAD
$115.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

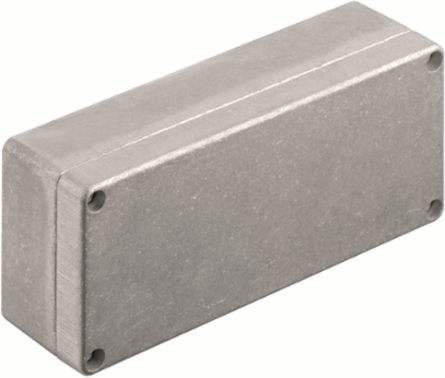

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 165 mm, Depth: 45 mm, Material: Aluminium AlSi12, untreated, silver
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS, DNV GL, EAC, MARITREG
- UL File Number Search
- E197061
ROHSConform

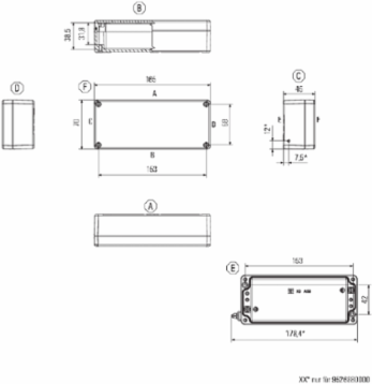

Dimensions And Weights
- Width
- 165 mm
- Height
- 70 mm
- Depth
- 45 mm
- Mounting dimension - width
- 153 mm
- Net weight
- 469.8 g
Width (inches)6.496 inch
Height (inches)2.756 inch
Depth (inches)1.772 inch
Mounting dimension - height42 mm
Horizontal Assembly
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x22
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Cable Glands, Top/Bottom
- M12
- 6
- M20
- 4
M165
Cable Glands, Right
- M12
- 1
M161
Cable Glands, Left
- M12
- 1
M161
General Information
- Areas of use
- Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
- Material
- Aluminium AlSi12
- Surface finish
- untreated
- Operating temperature, max.
- 135 °C
- Protection degree
- IP66, IP67, IP68
- Enclosure attachment
- Holes 4 mm
- Integral fixing
- Threaded holes M4
Torque for lid screws2.5 Nm
Seal materialSilicone
Operating temperature, min.-50 °C
Impact resistance10.00 J
Note: protection classIP68 (t=72h, h=1m)
Lid attachmentM4 torx stainless steel screws with slot
Certificate Numbers Enclosure
- Certificate No. (GERMLLOYD)
- TAE00002SM
- Certificate no. (cULus)
- E197061
Certificate No. (MARITREG)14.40040.250
