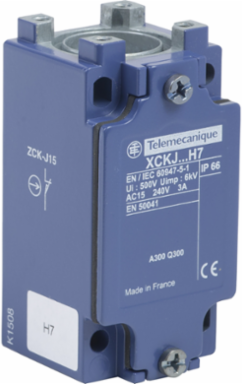

Telemecanique Sensors ZCKJ15H7 Limit switch body, Limit switches XC Standard, 300 V AC, 10 A, XCK
- MPN: ZCKJ15H7
- PPN: TES-ZCKJ15H7
- UNSPSC: 39122213
CAD
$112.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body, Limit switches XC Standard, 300 V AC, 10 A, XCK
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Body Type
- fixed
- Contact Operation
- snap action
- Associated Head
- ZCKE67 || ZCKE05 || ZCKE61 || ZCKE62 || ZCKE619 || ZCKE06 || ZCKE65 || ZCKE64 || ZCKE66 || ZCKE21 || ZCKE23 || ZCKE629 || ZCKE63 || ZCKE08
- Cable Entry
- 1 entry tapped for 1/2" NPT cable gland
- Product Compatibility
- XCKJ
- Device Short Name
- ZCKJ
Contacts Type And Composition1 NC + 1 NO
Range Of ProductTelemecanique Limit switches XC Standard
Contacts Materialgold plated contacts
Body Materialmetal
Product Or Component Typelimit switch body
Number Of Steps1 1 position
Number Of Poles2
Complementary
- Height
- 77-77 mm
- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Width
- 40 mm
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG
Positive Openingwith
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current10 A
Depth44 mm
Net Weight0.31 kg
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ip Degree Of Protection
- IP66
Environmental Characteristicstandard environment
Ik Degree Of ProtectionIK07
