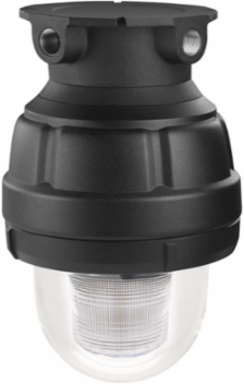

LED Light, Explosion-Proof, UL and cUL CID1, 24VDC, Clear, Default Flashing, Mount Sold Separately
Federal Signal

Federal Signal 27XL-024C-MOD LED Light, Explosion-Proof, UL and cUL CID1, 24VDC, Clear, Default Flashing, Mount Sold Separately

  • MPN: 27XL-024C-MOD
  • UPC: 782979232643
  • PPN: FDS-27XL-024C-MOD
  • UNSPSC: 39111706

CAD

$3262.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The model 27XL explosion-proof LED light is unique to the market because it covers an entire range of possible mounting configurations – including dome up.Configurable to either steady-burning or flashing mode, 27XL provides improved performance over standard LEDs and increased versatility while maintaining low power consumption and vibration resistance expected from LED devices.The 27XL features a standard low in-rush circuitry design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices. Corrosion resistance is achieved with a powder coat finish applied over the copper-free aluminum housing. Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.

Features

  • Approved for mounting in any manner – including dome up
  • Available in 24 Vac/dc and 120-240 Vac
  • 50,000-hour LED
  • Six lamp/lens colors: Amber, Blue, Clear, Green, Magenta, and Red
  • 3/4-inch NPT pendant, ceiling, or wall mount options available. Sold separately (Required)
  • Flashing or steady-burn mode
  • Dome guard optional
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Rated

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Weight
13.9 lbs
Candela Effective Power
238
Diameter
8.82 in (224.028 mm)
Flashes Per Minute
60
Lens Color
Clear
Mount Type
3/4-Inch NPT Pendant, Ceiling, Wall
Operating Temp.
-67˚ to +150˚F (-55˚ to +66˚C)
Visual Signals Lens Color
Clear
Environmental Rating
Explosion-Proof
Lead Time
Ships in 10 Business Days
Height11.37 in
Body ColorBlack
Certification ListingMarine, UL, cUL
Flash Pattern TypeFlashing or Steady
AvailabilityShips in 10 Business Days
Lens StyleFresnel
Operating Current Amps400 mA @ 24VAC/DC
Required Mountblack-mounting-kits
Visual Signals Operating Voltage24VAC/DC
Enclosure RatingIP66, IP69K, Type 4X
Product Life Cycle StatusCompleted
