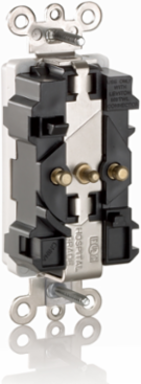

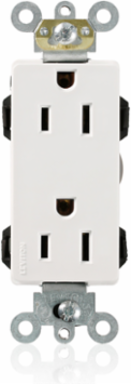

Leviton M1626-W 15 Amp Lev-Lok Duplex Receptacle Outlet, Industrial Grade, NEMA 5-15R
- MPN: M1626-W
- UPC: 078477364031
- PPN: LEV-M1626-W
CAD
$22.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Lev-Lok Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Modular, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator
Features

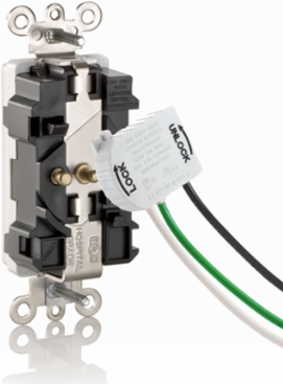

- The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NOM Certified | 057 |
| cULus | Listed |
| NEMA | WD-1 & WD-6 |
|---|---|
| Warranty | 10-Year Limited |
Material Specifications
| Base Material | Nylon |
|---|---|
| Ground Clips | Brass |
| Locking Pins | Solid Brass |
| Mounting Strap | Galvanized Steel with Riveted Ground Contacts |
| Cover Material | Nylon |
|---|---|
| Line Contacts | 0.040” Thick Solid Brass |
| Mounting Screws | Triple Combination Head, Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|
| Termination | Modular |
|---|
Product Features
| Brand | Lev-Lok Decora Plus |
|---|---|
| Device Type | Duplex Receptacle Outlet |
| Grade | Heavy-Duty Industrial Specification Grade |
| Color | White |
|---|---|
| Feature 4 | Smooth Face |
Environmental Specifications
| Flammability | Rated V-2 per UL94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Maximum Working Voltage | 125V as rated |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
| Current Interrupting | Certified for current interrupting at full rated current |
|---|---|
| Grounding | Self-Grounding |
| Pole | 2 |
| Voltage | 125 VAC |
AC Horsepower Ratings
| Horsepower Rating | 1/2 HP |
|---|
