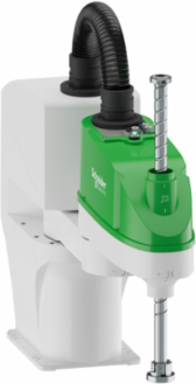

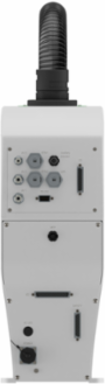

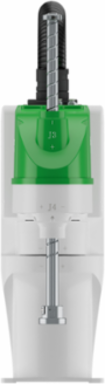

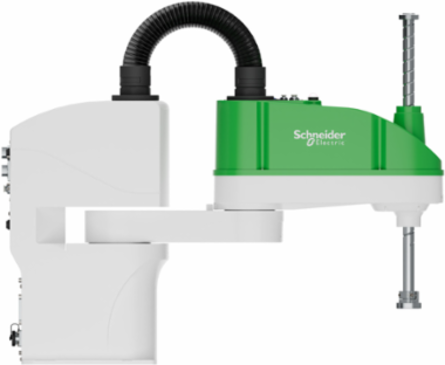

Schneider Electric LXMRSP0650300 Scara robot, Lexium Scara, 500mm arm, 300mm
- MPN: LXMRSP0650300
- PPN: SCH-LXMRSP0650300
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This robot belongs to the Lexium SCARA robot range. It is a high-speed industrial robot with high movement accuracies. Its work area is 500mm, its stroke length is 300mm, its maximum payload capacity is 6kg and its communication is via a Sercos 3 fieldbus. It is designed to improve productivity and efficiency in manufacturing and assembly processes. The working range of the first axis is 130degrees, second axis is 129degrees, third axis is 360degrees. The maximum speeds are 7050mm per second for axes 1 and 2 combined, 1100mm per second for axis 3, and 2150deg per second for axis 4. It weighs 27kg. It is intended for industrial applications such as Assembly, Loading and unloading, Pick-and-place, Packaging, and Material handling. This SCARA robot comply with the CE and UKCA certifications. It is compatible with LMC402, LMC802, and LMC902 Motion controllers and is configurable with ESME Machine Expert software. it is sold individually per package. This robot is mounted on the ground, on its base, with 6 fixing points. The Lexium SCARA, with its built-in controller and precise tracking mechanisms, offers an all-in-one ultra-compact, high-speed, and precise robotic system. The SCARA robot range expands the industrial robotics portfolio.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Complementary Attributes
- Maximum Actuation Speed
- 7050 mm/s J1+J21100 mm/s J3
- Rated Power In W
- 0.9 kW
Maximum Power2 kW
Important Information Attributes
- Operating Travel
- 0-500 mm horizontal, 0-300 mm vertical
- Work Space
- J1: +/- 130 °, J2: +/- 129 °, J3: 300 mm, J4: +/- 360 °
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 47 kg CO2 eq., 47.1530149996653
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 389 kg CO2 eq., 388.6880691067456
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Dangerous Goods Code
- LITHIUM ION BATTERIES IN EQUIP. BAT ≤ 100Wh AND ≤ 2 Battery in Package
- Angular Speed
- 2150 °/s J4
- Inertia
- 0.01 kg.m² J4
- Noise Level
- 70 dB
- Operating Position
- rotational 360°
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium SCARA
- Resistance To Fast Transients
- 2 kV
- Rotor Inertia
- 0.12 kg.m² J4
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2405024EN
- Pep Verification Date
- 2024-07-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8479500000
Repeat Accuracy+/- 0.02 mm J1, +/- 0.02 mm J1, +/- 0.02 mm J2, +/- 0.02 mm J2, +/- 0.01 mm J3, +/- 0.01 mm J3, +/- 0.01 ° J4, +/- 0.01 ° J4+/- 0.02 mm J1, +/- 0.02 mm J1, +/- 0.02 mm J2, +/- 0.01 mm J3, +/- 0.01 mm J3, +/- 0.01 ° J4, +/- 0.01 ° J4
Carbon Footprint Of The Distribution Phase [A4]71.5456037908384, 72 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]23.661964910254365, 24 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 860 kg CO2 eq., 3859.716037531958
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2405024EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2423
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Environmental Characteristicnormal environment
Mounting Modetabletop
Number Of Axis4
Permanent Permissible Load6 kg
Product Or Component TypeSCARA robot
Resistance To Electrostatic Discharge4 kV
ReturnabilityNo
Software Versionv6.1
Total Lifecycle Carbon Footprint4 391 kg CO2 eq.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo pick and place operations in material handling, parts loading/unloading with an active mode 50% of the time with the power use of 200 W and in stand-by mode 30% of the time with the power use of 25 W and off mode 20% of the time with power use 0 W for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh9417
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Package Weight(Lbs)51 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Operating Altitude
- > 1000...1500 m 10 % derating of performance, > 1000...1500 m 10 % derating of performance, > 1500...2000 m 20 % derating of performance, > 1500...2000 m 20 % derating of performance, 3280.84 ft (1000 m) without derating, > 1000...1500 m 10 % derating of performance, > 1000...1500 m 10 % derating of performance, > 1500...2000 m 20 % derating of performance, > 1500...2000 m 20 % derating of performance
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-40 °C
- Environmental Disclosure
- ENVPEP2405024EN
- Ip Degree Of Protection
- IP20IP65 with conformity kit)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2405024EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Transport Temperature-20-60 °C, -20-60 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint4390.764690339462
Circularity ProfileENVEOLI2405024EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-07-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- SCARA robot
Range Of ProductLexium SCARA
ETIM
- ETIM 8
- EC003245
ETIM 9EC003245
Input Attributes
- Input Voltage
- 170...250 V AC without derating100...170 V AC with derating of 15%
