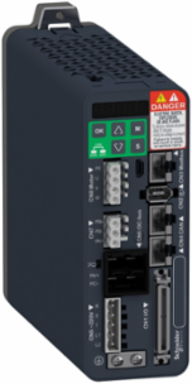

Schneider Electric LXM28EU10M3X Lexium28 EtherCAT drive, 1.0kW, 1/3 phase 230V

  • MPN: LXM28EU10M3X
  • PPN: SCH-LXM28EU10M3X
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1952.23

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Lexium28 EtherCAT drive, 1.0kW, 1/3 phase 230V

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China
    Depth170 mm

    Communications & Management Attributes

    Communication Interface
    EtherCAT, Integrated

    Complementary Attributes

    Line Rated Current
    7.0 A
    Maximum Leakage Current
    4.5 mA
    Maximum Current Irms21.0 A

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Electrical Connection
    spring terminal 1.3...1.5 mm², AWG 16 L1-L2), spring terminal 1.3...1.5 mm², AWG 16 R, S, T), spring terminal 1.3...1.5 mm², AWG 16 U, V, W, PE), spring terminal 1.3...1.5 mm², AWG 16 PA/+, PBe)
    Line Current
    8.5 A 176.3 % 220 V, single phase, 8.5 A 155.5 % 220 V, three phase
    Network Number Of Phases
    3, 1
    Phase
    three phase, single phase
    Safety Level
    SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/AC, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 62061 2012
    Supply Voltage
    200-240 V single phase, 200-240 V three phase
    Supply Voltage Limits
    200-255 V three phase, 170-255 V single phase
    [Us] Rated Supply Voltage
    200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase, 230 V
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.7 kg CO2 eq., 0.6537418919
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    24 kg CO2 eq., 24.3225608108
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Serviceability
    Yes
    Field Service Division
    IDIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1409001EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2014
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    4
    Function Option
    Advanced
    Market Segmentation
    Industrial
    Connector Type
    RJ45 CN4)EtherCAT
    Control Signal Type
    servo motor encoder feedback CN2
    Drive Voltage Drop Coefficient
    1
    Electromagnetic Compatibility
    conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
    Field Weakening
    false
    Method Of Access
    slave
    Nominal Power
    1 kW 220 V 16 kHz
    Overvoltage Category
    III
    Product Or Component Type
    motion servo drive
    Returnability
    No
    Shock Resistance
    10 gn, type I IEC 60721-3-3
    Software Version
    EIME v5.6.0.1
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    2 590 kg CO2 eq.
    Type Of Cable
    shielded motor cable 0-55 °C) copper
    Vibration Resistance
    3M4 3 mm 9-200 Hz)IEC 60721-3-3
    Pep Code
    ENVPEP1409001EN
    Pep Verification Date
    2020-11-01
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To control AC-servo motors BCH2 100% of the time for 10 years
    Functional-unit Unit
    unité (unit)
    Energy Consumption On Product Lifetime, In Kwh
    5234.7524
    Energy Model - Installation [A5]
    Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity mix; AC; < 1kV; EU-27
    Width Nominal
    55 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Emc Filter Compatibilitytype 020, type 022
    MarkingCE, cULus
    Nominal Voltage220 V single phase, 220 V three phase
    Protection Typeagainst reverse polarity inputs signal, against short-circuits outputs signal, overcurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
    Status Led1 LED (Red) DC bus energized, 1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.ERR, 2 LEDs (Green) Link (Link Status), 2 LEDs (Yellow) activity
    Supply Voltage Descriptionsingle phase 220 V AC 50...60 Hz, three phase 220 V AC 50...60 Hz
    Certificate AgencyCE, cULus
    Carbon Footprint Of The Distribution Phase [A4]0.1844989865, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0138516757, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]2 565 kg CO2 eq., 2564.7197998429
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeMotion - drive & motor
    TraceabilityYes
    Average Life Duration15 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id4
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Continuous Power1000 W 220 V
    Device Short NameLXM28E
    Electrical Isolationbetween power and control
    Emc Filterwithout EMC filter
    Format Of The Drivecompact housing
    Network Frequency47.5...63 Hz
    Operating Positionvertical
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductLexium 28
    Safety FunctionSTO (safe torque off), Integrated
    Signalling Functionservo status and fault codes five 7-segment display units
    Supply Frequency50/60 Hz - 5...5 %
    Switching Frequency16 kHz
    Transmission Rate100 Mbit/s EtherCAT
    Type Of Coolingfan
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: China
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
    Height Nominal150 mm
    Maximum [In] Rated Current7.0 A
    Package Weight(Lbs)1.518 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-65 °C, -25-65 °C
    Product Compatibility
    servo motor BCH2 130 mm, 1 1000 W, servo motor 100 mm, 1 1000 W, servo motor 130 mm, 2 900 W, servo motor 130 mm, 4 850 W
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ambient Air Temperature For Operation
    0-55 °C
    Environmental Disclosure
    ENVPEP1409001EN
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    No
    Relative Humidity
    5-95 % without condensation
    Pep Verification Date
    2020-11-01
    Type Of Verification For The Pep
    Independent internal review
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint2589.8944532077
    Circularity ProfileENVEOLI1409001EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1409001EN
    Pcr VersionPCR-ed3-EN-2015 04 02

    General Attributes

    Phase
    three phase, single phase
    Range Of Product
    Lexium 28
    Product Or Component Typemotion servo drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Discrete Output Number
    5 logic output CN1)12...24 V DC, 1 pulse train output (PTO) CN1)
    Output Voltage
    <= power supply voltage, <= power supply voltage
    Discrete Output Logic
    positive or negative CN1)
    Output Current 3s Peak21 A 220 V, 21 A
    Continuous Output Current7 A 16 kHz
    Discrete Output Voltage12...24 V DC

    Surge Protection And Filtering Attributes

    Emc Filter Compatibility
    type 020, type 022
    Emc Filterwithout EMC filter

    Input Attributes

    Discrete Input Number
    8 programmable CN1), 2 fast capture CN1), 1 safety function STO CN9)
    Discrete Input Voltage
    24 V DC logic
    Discrete Input Logicpositive or negative CN1)
