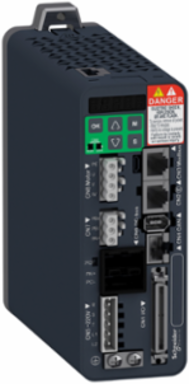

Schneider Electric LXM28EU04M3X Lexium 28 Motion Servo Drive, 400W, 220V, EtherCAT, IP20
- MPN: LXM28EU04M3X
- PPN: SCH-LXM28EU04M3X
CAD
$1855.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated EtherCAT interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (three phase/single phase), an output current of 2.6A, nominal power of 400W and continuous power of 400W. It is furnished with spring terminal electrical connection and RJ45 connectors (CN4) for EtherCAT. There is an electrical isolation between power and control. It offers EtherCAT communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (width) x 146mm (depth) x 150mm (height). It weighs 1kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (60mm, 2 motor stacks) at 400W and servo motor (130mm, 1 motor stack) at 300W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Depth146 mm
Communications & Management Attributes
- Communication Interface
- EtherCAT, Integrated
Complementary Attributes
- Line Rated Current
- 2.6 A
- Maximum Leakage Current
- 1.3 mA
Maximum Current Irms7.8 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- spring terminal 0.82...1 mm², 18 AWG L1-L2), spring terminal 0.82...1 mm², 18 AWG R, S, T), spring terminal 0.82...1 mm², 18 AWG U, V, W, PE), spring terminal 0.82...1 mm², 18 AWG PA/+, PBe)
- Marking
- CE, cULus
- Nominal Voltage
- 220 V single phase, 220 V three phase
- Protection Type
- against reverse polarity inputs signalagainst short-circuits outputs signalovercurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
- Status Led
- 1 LED (Red) DC bus energized1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.ERR, 2 LEDs (Green) Link (Link Status)2 LEDs (Yellow) activity
- Supply Voltage Description
- three phase 220 V AC 50...60 Hz, single phase 220 V AC 50...60 Hz
- [Us] Rated Supply Voltage
- 200...240 V - 10...15 %)three phase200...240 V - 20...15 %)single phase, 230 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.5988824324
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 22 kg CO2 eq., 22.2815067568
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2014
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Connector Type
- RJ45 CN4)EtherCAT
- Control Signal Type
- servo motor encoder feedback CN2
- Drive Voltage Drop Coefficient
- 1
- Electromagnetic Compatibility
- conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
- Field Weakening
- false
- Line Current
- 3.8 A 211.6 % 220 V, single phase3.8 A 183.7 % 220 V, three phase
- Network Frequency
- 47.5...63 Hz
- Operating Position
- vertical
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium 28
- Safety Function
- STO (safe torque off), Integrated
- Signalling Function
- servo status and fault codes five 7-segment display units
- Supply Frequency
- 50/60 Hz - 5...5 %
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 146 kg CO2 eq.
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Pep Code
- ENVPEP1409001EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control AC-servo motors BCH2 100% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 2291.1526
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 55 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504404000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Emc Filter Compatibilitytype 020, type 022
Network Number Of Phases1, 3
Phasethree phase, single phase
Safety LevelSIL 2 IEC 61800-5-2 2007SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/ACSIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/ACSIL 2 IEC 62061 2012
Supply Voltage200-240 V single phase, 200-240 V three phase
Certificate AgencyCE, cULus
Carbon Footprint Of The Distribution Phase [A4]0.1690165541, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0126892973, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 123 kg CO2 eq., 1122.5295847195
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Continuous Power400 W 220 V
Device Short NameLXM28E
Electrical Isolationbetween power and control
Emc Filterwithout EMC filter
Format Of The Drivecompact housing
Method Of Accessslave
Nominal Power0.4 kW 220 V 16 kHz
Overvoltage CategoryIII
Product Or Component Typemotion servo drive
ReturnabilityNo
Shock Resistance10 gn, type I IEC 60721-3-3
Software VersionEIME v5.6.0.1
Supply Voltage Limits200-255 V three phase170-255 V single phase
Switching Frequency16 kHz
Transmission Rate100 Mbit/s EtherCAT
Type Of Coolingfan
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal150 mm
Maximum [In] Rated Current2.6 A
Package Weight(Lbs)1.310 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-65 °C, -25-65 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1145.59167976
- Circularity Profile
- ENVEOLI1409001EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- servo motor BCH2 60 mm, 2 400 Wservo motor 80 mm, 1 400 Wservo motor 130 mm, 1 300 W
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-55 °C
Environmental DisclosureENVPEP1409001EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1409001EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase, single phase
- Range Of Product
- Lexium 28
Product Or Component Typemotion servo drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Output Current 3s Peak
- 220 V, 7.8 A
- Continuous Output Current
- 2.6 A 16 kHz
- Discrete Output Number
- 5 logic output CN1)12...24 V DC1 pulse train output (PTO) CN1)
Output Voltage<= power supply voltage, <= power supply voltage
Discrete Output Logicpositive or negative CN1)
Discrete Output Voltage12...24 V DC
Surge Protection And Filtering Attributes
- Emc Filter Compatibility
- type 020, type 022
Emc Filterwithout EMC filter
Input Attributes
- Discrete Input Number
- 8 programmable CN1)2 fast capture CN1), 1 safety function STO CN9)
- Discrete Input Voltage
- 24 V DC logic
Discrete Input Logicpositive or negative CN1)
