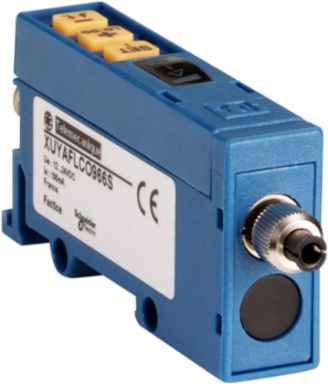

Telemecanique Sensors XUYAFLCO966S Photoelectric sensors XU, XUY, ampli for fibre, illumination, 12...24 VDC, M8
- MPN: XUYAFLCO966S
- PPN: TES-XUYAFLCO966S
CAD
$812.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Photoelectric sensors XU, XUY, ampli for fibre, illumination, 12...24 VDC, M8
Documentation & Downloads
Specifications
Key Specifications
- Type Of Output Signal
- discrete
- Sensor Name
- XUY
- Wiring Technique
- 4-wire
- Product Specific Application
- verifying operation of indicator lights on electrical appliances || testing car headlights on production line
- Sensor Design
- fiber design
- [Sn] Nominal Sensing Distance
- 0-0 mm depending on plastic fibres diameter 2.2 mm used
Range Of ProductTelemecanique Photoelectric sensors XU
Materialplastic
Series NameApplication assembly
Detection Systemdiffuse
Electronic Sensor Typephoto-electric sensor
Complementary
- Current Consumption
- < 40 mA
- Discrete Output Function
- 1 NO or 1 NC programmable
- Status Led
- output signal 1 LED green) || limit of detection 1 LED red) || time delay active 1 LED red)
- Maximum Voltage Drop
- <2 V closed state)
- Net Weight
- 0.054 kg
- Time Delay Range
- 0...5 s adjustment increments
- Switching Capacity In Ma
- 100 mA overload and short-circuit protection)
- Supply Circuit Type
- DC
- Maximum Delay Response
- 100 ms
- Voltage State 1 Guaranteed
- > 3 V
Electrical Connection1 male connector M8, 4 pins
Switching Frequency< 5 Hz
Setting-Upwith sensitivity adjustment
Maximum Delay Recovery100 ms
Voltage State 0 Guaranteed< 1.4 V
Supply Voltage Limits10-30 V DC
Enclosure Materialpolycarbonate
Output Typesolid state
[Us] Rated Supply Voltage24 V DC reverse polarity protection
Environment
- Product Certifications
- CE
- Ambient Air Temperature For Storage
- -20-80 °C
Ambient Air Temperature For Operation0-60 °C
Ip Degree Of ProtectionIP65 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
