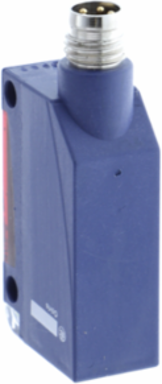

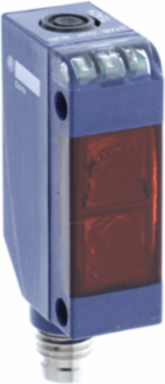

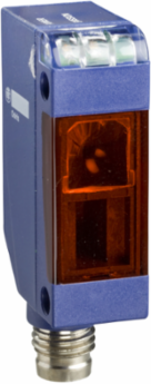

Telemecanique Sensors XUM0ANSAM8 Photoelectric sensors XU, XUM, multi, Sn 0...10 m, 12...24 VDC, M8
Telemecanique Sensors XUM0ANSAM8 Photoelectric sensors XU, XUM, multi, Sn 0...10 m, 12...24 VDC, M8
- MPN: XUM0ANSAM8
- PPN: SCH-XUM0ANSAM8
- UNSPSC: 39121528
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$167.10/ EA
Description
This miniature design multi mode photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and alignment, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It has a standard M8 connector, compatible with all existing market sensor cabling. It is CSA and UL certified.
Specifications
Environment
- Product Certifications
- UL || CE || CSA
- Vibration Resistance
- 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-55 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529 || IP67 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111232EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111207EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Current Consumption
- 35 mA no-load
- Switching Frequency
- <= 250 Hz || 240 Hz
- Status Led
- 1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state
- Lens Material
- PMMA
- Net Weight
- 0.035 kg
- Maximum Delay First Up
- 100 ms
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Enclosure Material
- PBT
- Output Type
- solid state
- Add On Output
- with alarm output, 50 mA
Height45 mm
Maximum Delay Response2 ms
Setting-Upself-teaching
Maximum Voltage Drop<1.5 V closed state)
Maximum Delay Recovery2 ms
Maximum Sensing Distance14 m thru beam || 4 m polarised reflex || 0.1 m diffuse with background suppression || 0.55 m diffuse
Wire Insulation MaterialPVC
Width12 mm
Depth20 mm
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Specifications
- Electrical Connection
- 1 male connector M8, 4 pins
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Sensor Name
- XUM
- Wiring Technique
- 3-wire
- Detection System
- multimode
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 3-3 m polarised reflex need reflector XUZC50 || 10-10 m thru beam need a transmitter XUM0AKSAM8T || 0.1-0.1 m diffuse with background suppression || 0.4-0.4 m diffuse
Discrete Output TypeNPN
Type Of Output Signaldiscrete
Emissioninfrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex
Materialplastic
Series Namegeneral purpose multimode
Sensor Designminiature
Electronic Sensor Typephoto-electric sensor
