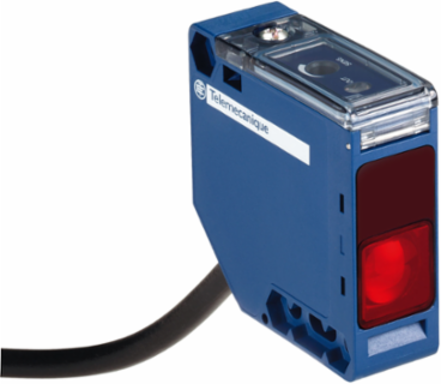

Telemecanique Sensors XUK0ARCTL2T Photoelectric sensors XU, XUK, emitter, 24...240 VAC, cable 2 m
- MPN: XUK0ARCTL2T
- PPN: TES-XUK0ARCTL2T
- UNSPSC: 39121528
CAD
$134.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This compact design multi mode (0) photo-electric transmitter has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This multi-mode rectangular photoelectric emitter has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and troubleshoot issues. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Cable Length
- 2 m
- Sensor Name
- XUK
- Wiring Technique
- 2-wire
- Detection System
- thru beam
- Supply Circuit Type
- AC/DC
- [Sn] Nominal Sensing Distance
- 30-30 m thru beam need a receiver
Range Of ProductTelemecanique Photoelectric sensors XU
Emissioninfrared thru beam
Materialplastic
Series Namegeneral purpose multimode
Sensor Designcompact 50 x 50
Electronic Sensor Typephoto-electric sensor transmitter
Complementary
- Height
- 50 mm
- Status Led
- 1 LED green)supply on
- Lens Material
- PMMA
- Add On Input
- test by emission breaking
- Maximum Sensing Distance
- 35 m thru beam
- Switching Capacity In Ma
- 3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
- Enclosure Material
- PBT
- Depth
- 50 mm
Switching Frequency<= 20 Hz
Setting-Upwithout sensitivity adjustment
Maximum Voltage Drop<1.5 V closed state)
Time Delay Range0...10 s monostable, on-delay or off-delay (programmable)
Supply Voltage Limits10-264 V DC || 20-264 V AC
Wire Insulation MaterialPvR
Width18 mm
[Us] Rated Supply Voltage12...240 V DC || 24...240 V AC
Environment
- Product Certifications
- CSA || CE || UL
- Vibration Resistance
- 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-55 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111232EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111207EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
