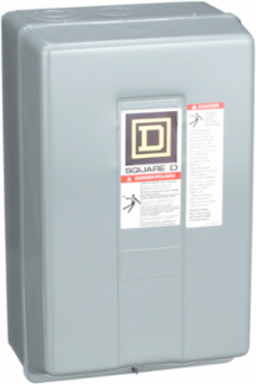

Square D 8903LG1000V02 Multipole Lighting Contactor 30A 10 Pole 600V NEMA 1
- MPN: 8903LG1000V02
- UPC: 785901851530
- PPN: SCH-8903LG1000V02
CAD
$2501.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 10 pole device has 10 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- 8903L
- Control Circuit
- separate control circuit
Product Or Component TypeElectrically Held Lighting Contactor
Complementary
- Height
- 322 mm
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Local Signalling
- no indicator
- Electrical Connection
- screw-clamp terminals
- Depth
- 153 mm
- Poles Description
- 10P 10 NO
Control Typeno control units
Inrush Power In Va180-180 VA 60 Hz || 170-170 VA 50 Hz
Hold-In Power Consumption In Va35-35 VA 60 Hz || 35-35 VA 50 Hz
Width198 mm
[In] Rated Current20-20 A tungsten || 30-30 A fluorescent
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Circularity ProfileN/A
Halogen Content PerformanceHalogen free plastic parts product
