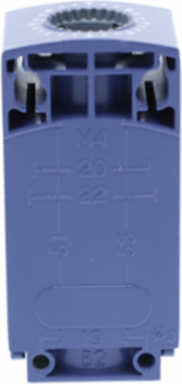

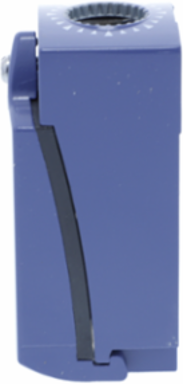

Telemecanique Sensors ZCD27 Limit switch body, Limit switches XC Standard, ZCD, compact, 2NC, slow break
- MPN: ZCD27
- PPN: TES-ZCD27
CAD
$54.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ZCD body/contact assembly has a standard contacts and a Zamak body. It has 2 x NC simultaneous (slow break) contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
| Series Name | Standard compact |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Contact Operation | slow-break, simultaneous |
| Body Material | zamak |
| Design | compact |
| Number Of Poles | 2 |
| Contacts Type And Composition | 2 NC |
|---|---|
| Body Type | fixed |
| Associated Head | ZCE06 || ZCE64 || ZCE14 || ZCEH2 || ZCE21 || ZCE63 || ZCE08 || ZCEH0 || ZCE02 || ZCE29 || ZCE01 || ZCE05 || ZCE66 || ZCE24 || ZCE07 || ZCE13 || ZCE11 || ZCE27 || ZCE65 || ZCE28 || ZCE62 || ZCE67 || ZCE10 |
| Product Or Component Type | limit switch body |
| Device Short Name | ZCD |
Complementary
| Height | 65-65 mm |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Positive Opening | with |
| Contacts Insulation Form | Zb |
| Contacts Material | silver plated contacts |
| Width | 31 mm |
| Depth | 30 mm |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
|---|---|
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Minimum Actuation Speed | 6 m/s |
| Electrical Connection | screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A |
| Associated Connection Component | ZCDEG13 || ZCDEF12 || ZCDEP16 || ZCDEN12 || ZCDEP20 || ZCDEG11 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
Environment
| Ambient Air Temperature For Storage | -40-70 °C |
|---|---|
| Product Compatibility | XCKD |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
