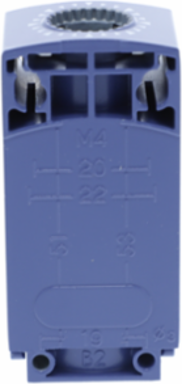

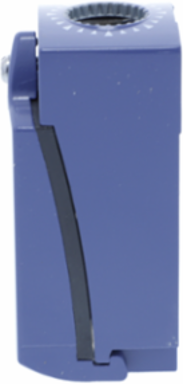

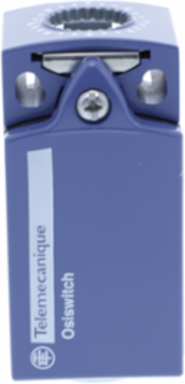

Telemecanique Sensors ZCD28 Limit switch body, Limit switches XC Standard, ZCD, compact, 2 NO, slow break
Telemecanique Sensors ZCD28 Limit switch body, Limit switches XC Standard, ZCD, compact, 2 NO, slow break
- MPN: ZCD28
- PPN: TES-ZCD28
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$53.03/ EA
Description
This ZCD body/contact assembly has a standard contacts and a Zamak body. It has 2 x NO simultaneous (slow break) contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Specifications
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Product Compatibility
- XCKD
Ambient Air Temperature For Operation-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Positive Opening
- without
- Contacts Insulation Form
- Zb
- Contacts Material
- silver plated contacts
- Width
- 31 mm
- Depth
- 30 mm
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Minimum Actuation Speed6 m/s
Electrical Connectionscrew-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Code DesignationB300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Associated Connection ComponentZCDEP16 || ZCDEN12 || ZCDEG11 || ZCDEG13 || ZCDEF12 || ZCDEP20
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
Specifications
- Series Name
- Standard compact
- Body Type
- fixed
- Contact Operation
- slow-break, simultaneous
- Body Material
- zamak
- Design
- compact
- Number Of Poles
- 2
Contacts Type And Composition2 NO
Range Of ProductTelemecanique Limit switches XC Standard
Associated HeadZCE11 || ZCE08 || ZCE07 || ZCE67 || ZCE01 || ZCE29 || ZCE02 || ZCE13 || ZCE10 || ZCE05 || ZCE21 || ZCE63 || ZCE24 || ZCEH2 || ZCEH0 || ZCE06 || ZCE28 || ZCE27 || ZCE64 || ZCE14 || ZCE62 || ZCE66 || ZCE65
Product Or Component Typelimit switch body
Device Short NameZCD
