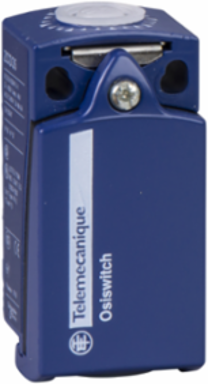

Telemecanique Sensors ZCD35 Limit switch body, Limit switches XC Standard, ZCD, compact, 1NC+2 NO, slow break
- MPN: ZCD35
- PPN: TES-ZCD35
CAD
$69.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Limit switch body, Limit switches XC Standard, ZCD, compact, 1NC+2 NO, slow break
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- Standard compact
- Body Type
- fixed
- Contact Operation
- slow-break, break before make
- Body Material
- zamak
- Design
- compact
- Number Of Poles
- 3
Contacts Type And Composition1 NC + 2 NO
Range Of ProductTelemecanique Limit switches XC Standard
Associated HeadZCE07 || ZCE08 || ZCE11 || ZCE10 || ZCE62 || ZCE06 || ZCE29 || ZCE01 || ZCEH2 || ZCE02 || ZCE05 || ZCE67 || ZCE13 || ZCE66 || ZCEH0 || ZCE21 || ZCE24 || ZCE63 || ZCE64 || ZCE27 || ZCE65 || ZCE28 || ZCE14
Product Or Component Typelimit switch body
Device Short NameZCD
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contacts Material
- silver plated contacts
- Width
- 31 mm
- Depth
- 30 mm
Electrical Durability5000000 cycles, DC-13 120 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage300 VUL 508 || 300 VCSA C22.2 No 14 || 400 V 3)IEC 60947-1
Minimum Actuation Speed6 m/s
Electrical Connectionscrew-clamp terminals 1 x 0.34...2 x 0.75 mm²
Contact Code DesignationR300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A || C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A
Associated Connection ComponentZCDEP16 || ZCDEG11 || ZCDEN12 || ZCDEG13 || ZCDEF12 || ZCDEP20
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60664 || 4 kV IEC 60947-1
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Product Compatibility
- XCKD
Ambient Air Temperature For Operation-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
