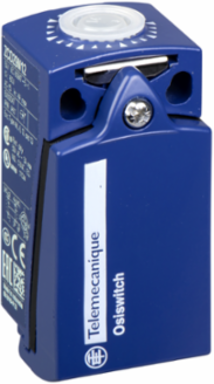

Telemecanique Sensors ZCD68 Limit switch body, Limit switches XC Standard, metal 1 NO 1 NO, slwa gold flashed c
- MPN: ZCD68
- PPN: TES-ZCD68
- UNSPSC: 39122213
CAD
$75.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body, Limit switches XC Standard, metal 1 NO 1 NO, slwa gold flashed c
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- Standard compact
- Body Type
- fixed
- Contact Operation
- snap action
- Body Material
- zamak
- Design
- compact
- Number Of Poles
- 2
Contacts Type And Composition1 NO + 1 NO
Range Of ProductTelemecanique Limit switches XC Standard
Associated HeadZCE05 || ZCE06 || ZCE02 || ZCE01
Product Or Component Typelimit switch body
Device Short NameZCD
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contacts Material
- silver plated contacts
- Width
- 31 mm
- Depth
- 30 mm
Electrical Durability5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage300 VUL 508 || 300 VCSA C22.2 No 14 || 400 V 3)IEC 60947-1
Minimum Actuation Speed0.01 m/s
Electrical Connectionscrew-clamp terminals 1 x 0.34...2 x 0.75 mm²
Contact Code DesignationR300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A || C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A
Associated Connection ComponentZCDEG11 || ZCDEF12 || ZCDEG13 || ZCDEN12
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60664 || 4 kV IEC 60947-1
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Product Compatibility
- XCKD
Ambient Air Temperature For Operation-25-70 °C
