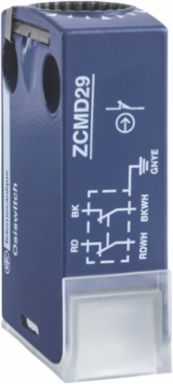

Telemecanique Sensors ZCMD69C12 Limit switch body, Limit switches XC Standard, ZCMD, 2NC, gold, snap action, connection, M12
- MPN: ZCMD69C12
- PPN: TES-ZCMD69C12
CAD
$213.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body, Limit switches XC Standard, ZCMD, 2NC, gold, snap action, connection, M12
Documentation & Downloads
Specifications
Key Specifications
| Series Name | standard format |
|---|---|
| Body Type | fixed |
| Contact Operation | snap action |
| Body Material | zamak |
| Design | miniature |
| Number Of Poles | 2 |
| Contacts Type And Composition | 2 NC |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Associated Head | ZCE62 || ZCEG1 || ZCE11 || ZCE64 || ZCE27 || ZCE65 || ZCEF0 || ZCE14 || ZCE21 || ZCE24 || ZCEF2 || ZCE06 || ZCE09 || ZCE63 || ZCE66 || ZCE02 || ZCE28 || ZCE01 || ZCE13 || ZCE08 || ZCE07 || ZCE10 || ZCE29 || ZCE67 |
| Product Or Component Type | limit switch body |
| Device Short Name | ZCMD |
Complementary
| Height | 50-50 mm |
|---|---|
| Short-Circuit Protection | 4 A cartridge fuse gG |
| Positive Opening | without |
| Contacts Insulation Form | Zb |
| Electrical Connection | male connector M12, 5 pins |
| [Ithe] Conventional Enclosed Thermal Current | 4 A |
| Depth | 16 mm |
| Net Weight | 0.065 kg |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
| Electrical Durability | 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
|---|---|
| [Ui] Rated Insulation Voltage | 60 V 3)IEC 60947-5-1 |
| Minimum Actuation Speed | 0.01 m/min |
| [Ie] Rated Operational Current | 0.22 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A || 3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A |
| Contacts Material | gold plated contacts |
| Width | 30 mm |
| Product Compatibility | XCMD |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV IEC 60664 || 0.8 kV IEC 60947-1 |
Environment
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI110612EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110612EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
