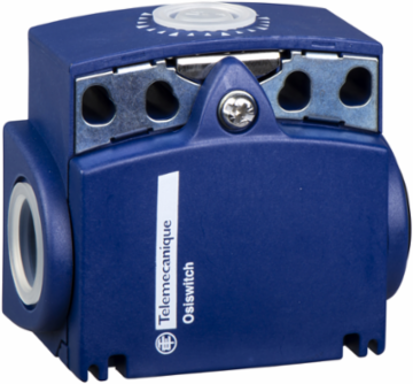

Telemecanique Sensors ZCT28P16 Limit switch body, Limit switches XC Standard, ZCT, compact, 2 NO, slow break, M16
- MPN: ZCT28P16
- PPN: TES-ZCT28P16
- UNSPSC: 39122213
CAD
$51.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Limit switch body, Limit switches XC Standard, ZCT, compact, 2 NO, slow break, M16
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- Standard compact
- Body Type
- fixed
- Contact Operation
- slow-break, simultaneous
- Body Material
- plastic
- Design
- compact
- Number Of Poles
- 2
Contacts Type And Composition2 NO
Range Of ProductTelemecanique Limit switches XC Standard
Associated HeadZCE21 || ZCE06 || ZCE14 || ZCE05 || ZCE66 || ZCEH2 || ZCE11 || ZCE08 || ZCE13 || ZCE24 || ZCE63 || ZCE10 || ZCE67 || ZCE07 || ZCE29 || ZCEH0 || ZCE62 || ZCE01 || ZCE28 || ZCE65 || ZCE27 || ZCE02 || ZCE64
Product Or Component Typelimit switch body
Device Short NameZCT
Complementary
- Height
- 51-51 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Positive Opening
- without
- Contacts Insulation Form
- Zb
- Contacts Material
- silver plated contacts
- Contact Code Designation
- B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- Depth
- 30 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Minimum Actuation Speed6 m/s
Electrical Connectionscrew-clamp terminals 1 x 0.5...2 x 2.5 mm²
Cable Entry2 entries tapped for M16 x 1.5 cable gland 4-8 mm
Width58 mm
Net Weight0.085 kg
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Product Compatibility
- XCKT
Ambient Air Temperature For Operation-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI110603EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP110606EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
