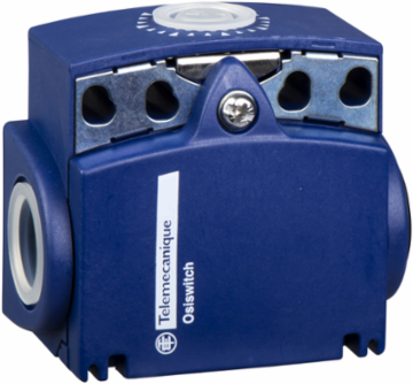

Telemecanique Sensors ZCT28G11 Limit switch body, Limit switches XC Standard, ZCT, compact, 2 NO, slow break, Pg11
- MPN: ZCT28G11
- PPN: TES-ZCT28G11
- UNSPSC: 39122213
CAD
$49.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body, Limit switches XC Standard, ZCT, compact, 2 NO, slow break, Pg11
Documentation & Downloads
Specifications
Key Specifications
| Series Name | Standard compact |
|---|---|
| Body Type | fixed |
| Contact Operation | slow-break, simultaneous |
| Body Material | plastic |
| Design | compact |
| Number Of Poles | 2 |
| Contacts Type And Composition | 2 NO |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Associated Head | ZCE63 || ZCE66 || ZCE27 || ZCE28 || ZCE10 || ZCE06 || ZCE64 || ZCE65 || ZCE29 || ZCE01 || ZCE02 || ZCE05 || ZCE24 || ZCEH0 || ZCE14 || ZCEH2 || ZCE11 || ZCE67 || ZCE08 || ZCE07 || ZCE62 || ZCE13 || ZCE21 |
| Product Or Component Type | limit switch body |
| Device Short Name | ZCT |
Complementary
| Height | 51-51 mm |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Positive Opening | without |
| Contacts Insulation Form | Zb |
| Contacts Material | silver plated contacts |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A |
| Depth | 30 mm |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
|---|---|
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Minimum Actuation Speed | 6 m/s |
| Electrical Connection | screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Cable Entry | 2 entries tapped for Pg 11 cable gland 4-8 mm |
| Width | 58 mm |
| Net Weight | 0.13 kg |
Environment
| Ambient Air Temperature For Storage | -40-70 °C |
|---|---|
| Product Compatibility | XCKT |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI110603EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110606EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
