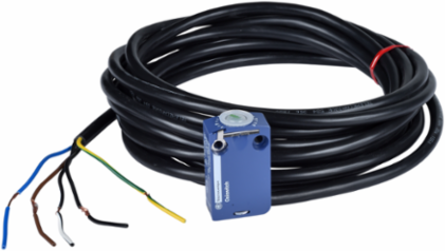

Telemecanique Sensors ZCMD21L1 Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, snap action, connection, 1 m
- MPN: ZCMD21L1
- PPN: TES-ZCMD21L1
- UNSPSC: 39122213
CAD
$107.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ZCM body/contact assembly with connector has standard contacts and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and is pre-cabled (1 meter cable). It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- zamak
- Number Of Poles
- 2
Associated HeadZCE24 || ZCE08 || ZCE21 || ZCE07 || ZCEF0 || ZCE02 || ZCE13 || ZCE62 || ZCE65 || ZCE64 || ZCE01 || ZCE29 || ZCE09 || ZCE06 || ZCEG1 || ZCE66 || ZCE14 || ZCE10 || ZCEF2 || ZCE63 || ZCE28 || ZCE27 || ZCE11 || ZCE67
Designminiature
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameZCMD
Complementary
- Height
- 50-50 mm
- Minimum Actuation Speed
- 0.01 m/min
- Contacts Material
- silver plated contacts
- Net Weight
- 0.065 kg
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Wire Insulation Material
- PvR
- Width
- 30 mm
- Product Compatibility
- XCMD
Short-Circuit Protection6 A cartridge fuse gG
Electrical Connectionremovable cable
Cable Length1 m
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60664 || 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Contacts Insulation FormZb
Cable Composition5 x 0.75 mm²
Depth16 mm
Maximum Resistance Across Terminals25 mOhm IEC 60255-7 category 3
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110612EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
