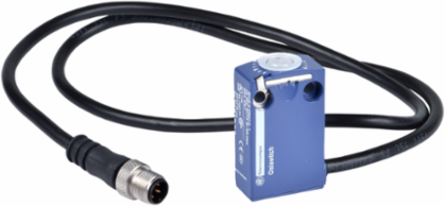

Telemecanique Sensors ZCMD21L08R12 Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, snap action, connection, M12 0.8 m
Telemecanique Sensors ZCMD21L08R12 Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, snap action, connection, M12 0.8 m
- MPN: ZCMD21L08R12
- PPN: TES-ZCMD21L08R12
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$188.98/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This body is main part of limit switch, contains the electrical contact mechanism. It has 1 normally closed + 1 normally opened, snap action contacts with positive opening operation. It is a limit switch body with a rated operational current of 3A at 240V AC, 0.22A at 250V AC and a conventional enclosed thermal current of 4A. It is furnished with a 5-pin M12 remote male connector for electrical connection. It offers long electrical durability of about 5 million operating cycles. This limit switch body is in fixed type which is made of Zamak. Its dimensions are 30mm (width) x 16mm (depth) x 50mm (height) and weighs 0.065kg. It is intended for all industrial machine application such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is associated with ZCEF0, ZCE14, ZCE27, ZCE28, ZCE01, ZCE11, ZCE02, ZCE21, ZCE06, ZCE09, ZCE24, ZCEG1, ZCEF2, ZCE66, ZCE62, ZCE65, ZCE64, ZCE08, ZCE13, ZCE63, ZCE07, ZCE67, ZCE10 and ZCE29 heads. European standard products (EN 50047) have positive opening contacts, even in snap action versions which allow use in safety applications.
Specifications
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110612EN
Complementary
- Height
- 50-50 mm
- Minimum Actuation Speed
- 0.01 m/min
- Contacts Material
- silver plated contacts
- [Ithe] Conventional Enclosed Thermal Current
- 4 A
- [Uimp] Rated Impulse Withstand Voltage
- 0.8 kV IEC 60664 || 0.8 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 60 V 3)IEC 60947-5-1
- Contacts Insulation Form
- Zb
- Wire Insulation Material
- PvR
- Depth
- 16 mm
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
Short-Circuit Protection4 A cartridge fuse gG
Electrical Connectionremote male connector M12, 5 pins
Cable Length0.8 m
Net Weight0.065 kg
Electrical Durability5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
[Ie] Rated Operational Current0.22 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A || 3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A
Width30 mm
Product CompatibilityXCMD
Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- zamak
- Number Of Poles
- 2
Associated HeadZCEF0 || ZCE14 || ZCE27 || ZCE28 || ZCE01 || ZCE11 || ZCE02 || ZCE21 || ZCE06 || ZCE09 || ZCE24 || ZCEG1 || ZCEF2 || ZCE66 || ZCE62 || ZCE65 || ZCE64 || ZCE08 || ZCE13 || ZCE63 || ZCE07 || ZCE67 || ZCE10 || ZCE29
Designminiature
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameZCMD
