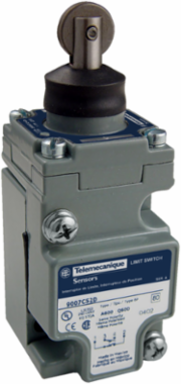

Telemecanique Sensors 9007C52DM11 Limit switch, 9007, 9007C compact 1 NO/NC, top roller plunger
- MPN: 9007C52DM11
- UPC: 785901102755
- PPN: TES-9007C52DM11
CAD
$347.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 9007C compact 1 NO/NC, top roller plunger
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Electrical Connection
- screw-clamp terminals AWG 22...AWG 12), 1-2
- Cable Entry
- 1 entry for M20 x 1.5 mm BS 4568
- Material
- metal
- Head Type
- plunger head
- Type Of Approach
- lateral approach, 2 directions
- Contacts Type And Composition
- NC-NO
- Body Type
- plug-in
- Contact Operation
- snap action
- Device Short Name
- 9007C
Range Of Product9007
Fixing Modeby the body
Product Or Component Typelimit switch
Type Of Operatorsteel spring return roller plunger -)
Switch Actuationby 30° cam
Series Nameheavy duty
Sale Per Indivisible Quantity1
Positive Openingwithout
Product Specific Applicationcompact box
Number Of Poles1
Complementary
- Height
- 3.78-3.78 in
- Contacts Material
- silver contacts
- Contact Form
- Form Z
- Net Weight
- 1.25 lb(US)
- [Ui] Rated Insulation Voltage
- 600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
- [Ie] Rated Operational Current
- 1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.1 A 600 V DC, Q600 NEMA || 0.27 A 250 V AC, Q600 NEMA || 0.55 A 125 V DC, Q600 NEMA
- Body Material
- zinc
- Minimum Force For Tripping
- 3 lbf
- Width
- 1.55 in
- Electrical Durability
- 1000000 cycles
Terminals Description Iso N°1(1-2)NC || (3-4)NO
[Ithe] Conventional Enclosed Thermal Current10 A
Head Materialzinc
Local Signallingwithout
Short-Circuit Protection10 A CC non-time delay
Mechanical Durability10000000 cycles
Switch FunctionSPDT-DB
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Depth1.79 in
Repeat Accuracy+/- 0.001 in linear travel of cam
Environment
- Ambient Air Temperature For Operation
- -20-185 °F standard environment
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Protective Treatment
- epoxy powder coat
Shock Resistance60 gn 9 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67 IEC 60529
Environmental Characteristicstandard environment
Electrical Shock Protection Classclass 0 IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
