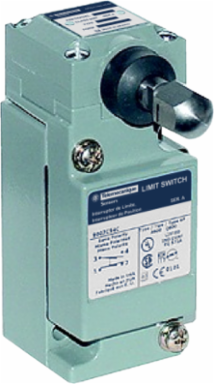

Telemecanique Sensors 9007C54GD NEMA limit switch, 9007C, heavy duty, standard, steel spring return side plunger, adjustable, 10A, 600V, 1NO/1NC, NEMA 4

These industrial heavy duty limit switches are applied in almost any environments. This adjustable side push rod plunger limit switch has a standard body and receptacle which is good for most applications. Limit switch has one normally open and one normally closed contact. The snap action contacts will change state as the adjustable side push rod is moved. Contacts have an A600 and Q600 inductive ratings and 10A resistive rating. The side roller plunger head requires 4 lb. of force to operate. This limit switch is 4.02 inches tall, 1.55 inches wide and 2.63 inches deep. This limit switch is NEMA 1, 2 4, 6, 6P, 12 and 13 rated. It is also rated IP67. Switch has a 0.50 inch conduit entry with 14 NPT. Limit switch is UL listed and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug-in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
