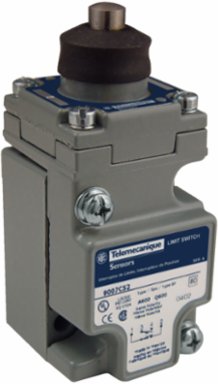

Telemecanique Sensors 9007C52E NEMA limit switch, 9007C, heavy duty, compact, steel spring return top plunger, 10A, 600V, 1NO/1NC, NEMA 4, 6P, 12, 13
- MPN: 9007C52E
- UPC: 785901783381
- PPN: TES-9007C52E
- UNSPSC: 39122213
CAD
$292.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These industrial heavy duty limit switches are applied in almost any environments. This top push rod plunger limit switch has a compact body and receptacle to fit into those tight spaces. Limit switch has one normally open and one normally closed contact. The snap action contacts will change state as the top push rod is moved. Contacts have an A600 and Q600 inductive ratings and 10A resistive rating. The top push rod plunger head requires 3 lb. of force to operate. This limit switch is 3.62 inches tall, 1.55 inches wide and 1.79 inches deep. This limit switch is NEMA 1, 2 4, 6, 6P, 12 and 13 rated. It is also rated IP67. Switch has a 0.50 inch conduit entry with 14 NPT. Limit switch is UL listed and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug-in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Electrical Connection
- screw-clamp terminals AWG 22...AWG 12), 1-2
- Cable Entry
- 1 entry for 1/2" - 14 NPT ANSI B1.20.1
- Material
- metal
- Head Type
- plunger head
- Type Of Approach
- vertical approach, 1 direction
- Contacts Type And Composition
- NC-NO
- Body Type
- plug-in
- Contact Operation
- snap action
- Device Short Name
- 9007C
Range Of Product9007
Fixing Modeby the body
Product Or Component Typelimit switch
Type Of Operatorstainless steel spring return plunger -)
Switch Actuationon end
Series Nameheavy duty
Sale Per Indivisible Quantity1
Positive Openingwithout
Product Specific Applicationcompact box
Number Of Poles1
Complementary
- Height
- 3.62-3.62 in
- Contacts Material
- silver contacts
- Contact Form
- Form Z
- Net Weight
- 1.25 lb(US)
- [Ui] Rated Insulation Voltage
- 600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
- [Ie] Rated Operational Current
- 1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.1 A 600 V DC, Q600 NEMA || 0.27 A 250 V AC, Q600 NEMA || 0.55 A 125 V DC, Q600 NEMA
- Body Material
- zinc
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
- Depth
- 1.79 in
- Repeat Accuracy
- +/- 0.001 in linear travel of cam
Terminals Description Iso N°1(3-4)NO || (1-2)NC
[Ithe] Conventional Enclosed Thermal Current10 A
Head Materialzinc
Local Signallingwithout
Short-Circuit Protection10 A CC non-time delay
Mechanical Durability10000000 cycles
Switch FunctionSPDT-DB
Width1.55 in
Electrical Durability1000000 cycles
Environment
- Ambient Air Temperature For Operation
- -20-185 °F standard environment
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Protective Treatment
- epoxy powder coat
Shock Resistance60 gn 9 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Environmental Characteristicstandard environment
Electrical Shock Protection Classclass 0 IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach RegulationReference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
