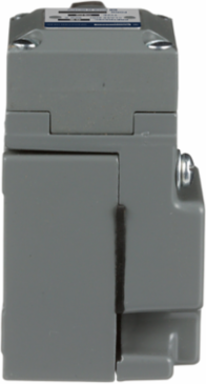

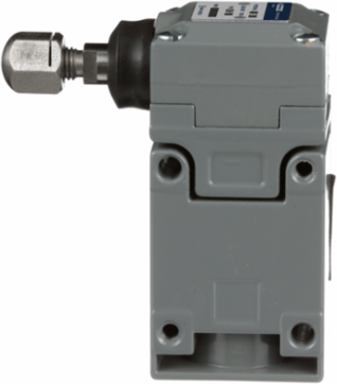

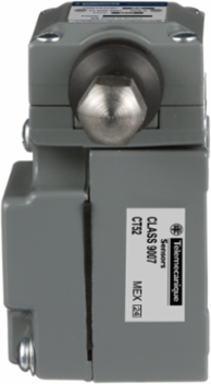

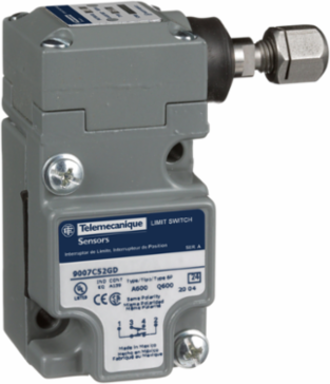

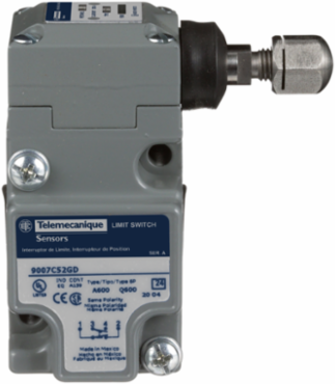

Telemecanique Sensors 9007C52GD NEMA limit switch, 9007C, heavy duty, compact, steel spring return side plunger, adjustable, 10A, 600V, 1NO/1NC, NEMA 4
Telemecanique Sensors 9007C52GD NEMA limit switch, 9007C, heavy duty, compact, steel spring return side plunger, adjustable, 10A, 600V, 1NO/1NC, NEMA 4
- MPN: 9007C52GD
- UPC: 785901783466
- PPN: TES-9007C52GD
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$328.78/ EA
Description
These industrial heavy duty limit switches are applied in almost any environments. This adjustable side push rod plunger limit switch has a compact body and receptacle to fit into those tight spaces. Limit switch has one normally open and one normally closed contact. The snap action contacts will change state as the adjustable side push rod is moved. Contacts have an A600 and Q600 inductive ratings and 10A resistive rating. The adjustable side rod plunger head requires 4 lb. of force to operate. This limit switch is 3.14 inches tall, 1.55 inches wide and 2.71 inches deep. This limit switch is NEMA 1, 2 4, 6, 6P, 12 and 13 rated. It is also rated IP67. Switch has a 0.50 inch conduit entry with 14 NPT. Limit switch is UL listed and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Specifications
Environment
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Electrical Shock Protection Class
- class 0 IEC 61140
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 IEC 60529
Environmental Characteristicstandard environment
Ambient Air Temperature For Operation-20-185 °F standard environment
Shock Resistance60 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Complementary
- Height
- 3.14-3.14 in
- [Ui] Rated Insulation Voltage
- 600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
- [Ie] Rated Operational Current
- 1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.1 A 600 V DC, Q600 NEMA || 0.27 A 250 V AC, Q600 NEMA || 0.55 A 125 V DC, Q600 NEMA
- Mechanical Durability
- 10000000 cycles
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Switch Function
- SPDT-DB
- Width
- 1.55 in
- Head Material
- zinc
- Net Weight
- 1.25 lb(US)
- Local Signalling
- without
Terminals Description Iso N°1(3-4)NO || (1-2)NC
Short-Circuit Protection10 A CC non-time delay
Contacts Materialsilver contacts
Body Materialzinc
Contact FormForm Z
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Depth2.71 in
Electrical Durability1000000 cycles
Repeat Accuracy+/- 0.001 in linear travel of cam
Specifications
- Switch Actuation
- on end
- Series Name
- heavy duty
- Movement Of Operating Head
- linear
- Body Type
- plug-in
- Positive Opening
- without
- Contact Operation
- snap action
- Fixing Mode
- by the body
- Product Or Component Type
- limit switch
- Device Short Name
- 9007C
- Number Of Poles
- 1
Type Of Approachlateral approach, 1 direction
Contacts Type And CompositionNC-NO
Sale Per Indivisible Quantity1
Range Of Product9007
Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2
Product Specific Applicationcompact box
Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1
Materialmetal
Type Of Operatorstainless steel spring return side plunger adjustable)
Head Typeplunger head
