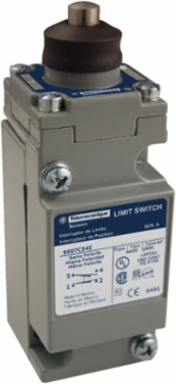

Telemecanique Sensors 9007C62E Limit switch 9007C, 600 V, 10 A, option version, Stainless steel spring return plunger (-), Form ZZ
- MPN: 9007C62E
- UPC: 785901530817
- PPN: TES-9007C62E
CAD
$346.95
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch 9007C, 600 V, 10 A, option version, Stainless steel spring return plunger (-), Form ZZ
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Body material | Zinc |
|---|---|
| Switch function | DPDT-DB |
| Contacts material | Silver contacts |
| Repeat accuracy | +/- 0.001 in linear travel of cam |
| Head material | Zinc |
|---|---|
| Contact form | Form ZZ |
| Terminals description ISO n°1 | (1-2)NC (3-4)NO (5-6)NC (7-8)NO |
| Local signalling | without |
Main
| Range of product | 9007 |
|---|---|
| Product or component type | Limit switch |
| Body type | Plug-in |
| Material | Metal |
| Movement of operating head | Linear |
| Switch actuation | On end |
| Electrical connection | Screw-clamp terminals (AWG 22...AWG 12), 1-2 |
| Contacts type and composition | 2(NC-NO) |
| Positive opening | Without |
| Series name | Heavy duty |
|---|---|
| Product specific application | Standard box |
| Head type | Plunger head |
| Fixing mode | By the body |
| Type of operator | Stainless steel spring return plunger (-) |
| Type of approach | Vertical approach, 1 direction |
| Cable entry | 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1 |
| Contact operation | Snap action |
Environment
| Shock resistance | 60 gn for 9 ms conforming to IEC 60068-2-27 |
|---|---|
| NEMA degree of protection | NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250 |
| Electrical shock protection class | Class 0 conforming to IEC 61140 |
| Protective treatment | Epoxy powder coat |
| Vibration resistance | 25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| Environmental characteristic | Standard environment |
