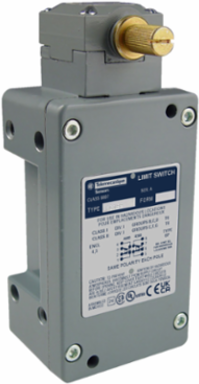

Limit switch, 9007, 9007CR 2 NO/NC 2 stage, rotary head, CW+CCW, low differential
Telemecanique Sensors

Telemecanique Sensors 9007CR65A2 Limit switch, 9007, 9007CR 2 NO/NC 2 stage, rotary head, CW+CCW, low differential

  • MPN: 9007CR65A2
  • UPC: 785901756903
  • PPN: TES-9007CR65A2
  • UNSPSC: 39122213

CAD

$596.72

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Limit switch, 9007, 9007CR 2 NO/NC 2 stage, rotary head, CW+CCW, low differential

Documentation & Downloads

Specifications

Key Specifications

Switch Actuation
CW and CCW || from left and right
Series Name
heavy duty
Movement Of Operating Head
rotary
Body Type
fixed
Level Or Class
Class I Division 1 Groups B/C/D || Class II Division 1 Groups E/F/G
Electrical Connection
screw-clamp terminals AWG 22...AWG 12), 1-2
Product Specific Application
hazardous location box
Cable Entry
1 entry for 1/2" - 14 NPT ANSI B1.20.1
Material
metal
Type Of Operator
zinc spring return without operating lever low differential)9007C lever
Head Type
rotary head
Type Of Approachlateral approach, 1 or 2 programmable direction
Contacts Type And Composition2(NC-NO)
Sale Per Indivisible Quantity1
Range Of Product9007
Positive Openingwithout
Contact Operationsnap action
Fixing Modeby the body
Product Or Component Typelimit switch
Device Short Name9007CR
Number Of Poles2

Complementary

Maximum Displacement Angle
90 °
Height
6.1-6.1 in
[Ui] Rated Insulation Voltage
600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
Short-Circuit Protection
10 A CC non-time delay
Contacts Material
silver contacts
Maximum Actuation Speed
90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
[Ithe] Conventional Enclosed Thermal Current
10 A
Switch Function
2 SPDT-DB
Width
2.72 in
Head Material
zinc
Electrical Durability
1000000 cycles
Repeat Accuracy
+/- 0.001 in linear travel of cam
Function Available2 stages sequential
Terminals Description Iso N°1(1-2)NC || (5-6)NC || (7-8)NO || (3-4)NO
Tripping Angle5 °
[Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.11 A 250 V DC, R300 NEMA || 0.55 A 125 V DC, R300 NEMA
Mechanical Durability10000000 cycles
Body Materialaluminium
Contact FormForm Z
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Depth2.79 in
Minimum Torque For Tripping4 lbf.in
Net Weight2.5 lb(US)
Local Signallingwithout

Environment

Ambient Air Temperature For Storage
-20-185 °F
Nema Degree Of Protection
NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Electrical Shock Protection Class
class 0 IEC 61140
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP67 conforming to IEC 60529
Environmental Characteristicstandard environment
Ambient Air Temperature For Operation-20-185 °F hazardous location
Shock Resistance60 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat

Contractual warranty

Warranty
18 months

Offer Sustainability

Environmental Disclosure
ENVPEP111160EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
