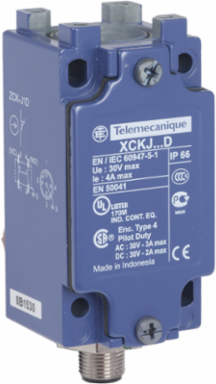

Telemecanique Sensors ZCKJ1D Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, M12

MPN: ZCKJ1D
PPN: TES-ZCKJ1D

$189.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a M12 connector. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Documentation & Downloads

Specifications

Key Specifications

Series Name	standard format
Range Of Product	Telemecanique Limit switches XC Standard
Contact Operation	snap action
Associated Head	ZCKE08 \|\| ZCKE65 \|\| ZCKE63 \|\| ZCKE619 \|\| ZCKE61 \|\| ZCKE06 \|\| ZCKE05 \|\| ZCKE64 \|\| ZCKE23 \|\| ZCKE67 \|\| ZCKE66 \|\| ZCKE21 \|\| ZCKE629 \|\| ZCKE62
Product Or Component Type	limit switch body
Number Of Steps	1 1 position
Number Of Poles	2

Contacts Type And Composition	1 NC + 1 NO
Body Type	fixed
Contacts Material	silver plated contacts
Body Material	metal
Product Compatibility	XCKJ
Device Short Name	ZCKJ

Complementary

Height	84-84 mm
Terminals Description Iso N°1	(23-24)NO \|\| (11-12)NC \|\| (13-14)NO \|\| (21-22)NC
[Ui] Rated Insulation Voltage	60 V 3)IEC 60947-1 contact block
Minimum Actuation Speed	0.01 m/min
Electrical Connection	male connector M12, 5 pins
Width	43 mm
Local Display	without
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60664 \|\| 6 kV IEC 60947-1

Electrical Durability	5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection	10 A cartridge fuse gG
Positive Opening	with
[Ie] Rated Operational Current	3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A \|\| 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current	10 A
Depth	36 mm
Net Weight	0.3 kg
Maximum Resistance Across Terminals	0.25 mOhm IEC 60255-7 category 3
