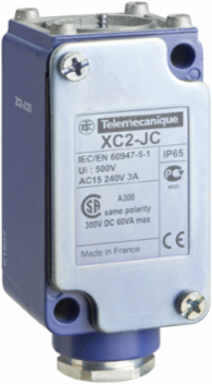

Telemecanique Sensors ZC2JC15 Limit switch body, Limit switches XC Standard, ZC2J, fixed, without display, 1C/O, 10...120 °C
- MPN: ZC2JC15
- PPN: TES-ZC2JC15
- UNSPSC: 39122213
CAD
$136.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is limit switch fixed body, with a one step contact block for plunger or rotary head. Single-pole 1 C/O snap action. It is part of the XC2J offer, a range of limit switches designed for high temperature applications, up to 120°C.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Associated Head
- ZC2JE025 || ZC2JE095 || ZC2JE615 || ZC2JE015 || ZC2JE035 || ZC2JE055 || ZC2JE625 || ZC2JE635 || ZC2JE645 || ZC2JE665 || ZC2JE705 || ZC2JE655
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- metal
- Device Short Name
- ZC2J
Contacts Materialsilver plated contacts
Cable Entry1 tapped entry for Pg 13.5 cable gland (included)
Number Of Steps1 1 position
Contacts Type And Composition1 C/O
Contact Operationsnap action
Product CompatibilityXC2J
Number Of Poles1
Complementary
- Height
- 81-81 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- Local Display
- without
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- without
- Width
- 40 mm
- Maximum Resistance Across Terminals
- 0.25 mOhm IEC 60255-7 category 3
Terminals Description Iso N°1(11-12)NC || (13-14)NO
Minimum Actuation Speed0.01 m/min
[Ithe] Conventional Enclosed Thermal Current10 A
Net Weight0.355 kg
[Ui] Rated Insulation Voltage500 VIEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Depth41 mm
Environment
- Ambient Air Temperature For Operation
- 10-120 °C high temperature
- Ambient Air Temperature For Storage
- 10-120 °C
- Ip Degree Of Protection
- IP65
Ik Degree Of ProtectionIK08
Environmental Characteristichigh temperature
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
