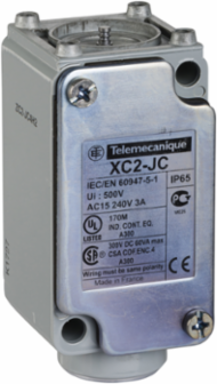

Telemecanique Sensors ZC2JC4H2 Limit switch body, Limit switches XC Standard, ZC2J, fixed, without display, 2C/O, M20
- MPN: ZC2JC4H2
- PPN: TES-ZC2JC4H2
- UNSPSC: 39122213
CAD
$301.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body, Limit switches XC Standard, ZC2J, fixed, without display, 2C/O, M20
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Body Type
- fixed
- Contact Operation
- snap action
- Associated Head
- ZC2JE07 || ZC2JE81 || ZC2JE04 || ZC2JE82 || ZC2JE85 || ZC2JE83 || ZC2JE06 || ZC2JE84
- Cable Entry
- 1 entry tapped for M20 x 1.5 cable gland
- Product Compatibility
- XC2J
- Device Short Name
- ZC2J
Contacts Type And Composition2 C/O
Range Of ProductTelemecanique Limit switches XC Standard
Contacts Materialsilver plated contacts
Body Materialmetal
Product Or Component Typelimit switch body
Number Of Steps2 3 positions || 2 sequential
Number Of Poles2
Complementary
- Height
- 81-81 mm
- Terminals Description Iso N°1
- (11-12)NC || (13-14)NO
- [Ui] Rated Insulation Voltage
- 500 VIEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Width
- 42 mm
- Local Display
- without
- Maximum Resistance Across Terminals
- 0.25 mOhm IEC 60255-7 category 3
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG
Positive Openingwithout
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current10 A
Depth41 mm
Net Weight0.38 kg
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ip Degree Of Protection
- IP65
Environmental Characteristicstandard environment
Ik Degree Of ProtectionIK08
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
