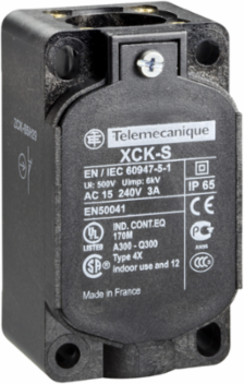

Telemecanique Sensors ZCKS2H29 Limit switch body, Limit switches XC Standard, ZCKS, 2C/O, snap action, M20
- MPN: ZCKS2H29
- PPN: TES-ZCKS2H29
- UNSPSC: 39122213
CAD
$72.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This body, with a 2-pole contact block, is a separate part for the XCKS limit switches. Contacts: 2 CO simultaneous, snap action. It is a plastic, double insulated body, in EN 50041 format, with 1 entry for ISO M20 x 1.5 cable gland.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Associated Head
- ZCKD59 || ZCKD02 || ZCKD34 || ZCKD54 || ZCKD08 || ZCKD33 || ZCKD41 || ZCKD05 || ZCKD029 || ZCKD91 || ZCKD31 || ZCKD06 || ZCKD49 || ZCKD01 || ZCKD39 || ZCKD019 || ZCKD55 || ZCKD81
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- plastic
- Device Short Name
- ZCKS
Contacts Materialsilver plated contacts
Cable Entry1 entry tapped for M20 x 1.5 cable gland
Number Of Steps1 1 position
Contacts Type And Composition2 C/O
Contact Operationsnap action
Product CompatibilityXCKS
Number Of Poles2
Complementary
- Height
- 73-73 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Depth
- 36 mm
Terminals Description Iso N°1(13-14)NO || (23-24)NO
Minimum Actuation Speed0.01 m/min
[Ithe] Conventional Enclosed Thermal Current10 A
Net Weight0.08 kg
Electrical Durability5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwithout
Width40 mm
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Environment
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP65
Ik Degree Of ProtectionIK03
Environmental Characteristicstandard environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307066
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1307066EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
