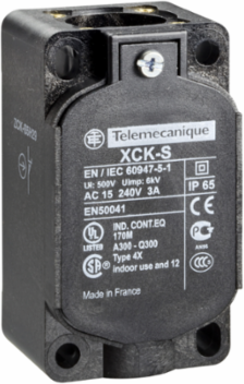

Telemecanique Sensors ZCKS2 Limit switch body, Limit switches XC Standard, ZCKS, 2C/O, snap action, Pg13.5
Telemecanique Sensors ZCKS2 Limit switch body, Limit switches XC Standard, ZCKS, 2C/O, snap action, Pg13.5
- MPN: ZCKS2
- PPN: TES-ZCKS2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$72.40/ EA
Description
This body, with a 2-pole contact bloc,k is a separate part for the XCKS limit switches. Contacts: 2 CO simultaneous, snap action. It is a plastic, double insulated body, in EN 50041 format, with 1 Pg 13.5 cable entry.
Specifications
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ip Degree Of Protection
- IP65
Environmental Characteristicstandard environment
Ik Degree Of ProtectionIK03
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI1307066EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1307066
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 73-73 mm
- Terminals Description Iso N°1
- (11-12)NC || (21-22)NC
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Width
- 40 mm
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG
Positive Openingwithout
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current10 A
Depth36 mm
Net Weight0.08 kg
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Specifications
- Series Name
- standard format
- Range Of Product
- Telemecanique Limit switches XC Standard
- Contact Operation
- snap action
- Associated Head
- ZCKD08 || ZCKD39 || ZCKD019 || ZCKD01 || ZCKD05 || ZCKD34 || ZCKD33 || ZCKD81 || ZCKD41 || ZCKD029 || ZCKD49 || ZCKD54 || ZCKD31 || ZCKD59 || ZCKD91 || ZCKD02 || ZCKD55 || ZCKD06
- Cable Entry
- 1 entry tapped for Pg 13.5 cable gland
- Product Compatibility
- XCKS
- Device Short Name
- ZCKS
Contacts Type And Composition2 C/O
Body Typefixed
Contacts Materialsilver plated contacts
Body Materialplastic
Product Or Component Typelimit switch body
Number Of Steps1 1 position
Number Of Poles2
