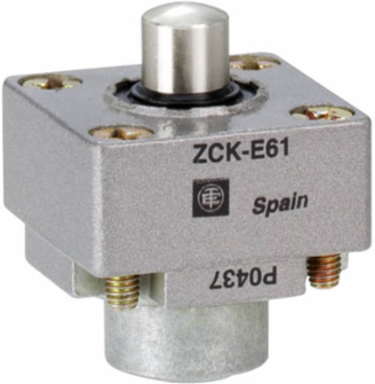

Telemecanique Sensors ZCKE615 Limit switch head, Limit switches XC Standard, ZCKE, metal end plunger, +120 °C
- MPN: ZCKE615
- PPN: TES-ZCKE615
CAD
$93.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, ZCKE, metal end plunger, +120 °C
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | vertical approach, 1 direction |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | end plunger spring return metal |
| Associated Body | ZCKJD37H29 || ZCKJ21 || ZCKJD39H29 || ZCKJ1 || ZCKJ4 || ZCKJD31 || ZCKJ8H7 || ZCKJ4H7 || ZCKJD31H7 || ZCKJ11H29 || ZCKJD35 || ZCKJ2 || ZCKJ41H29 || ZCKJ9H29 || ZCKJ41 || ZCKJ11H7 || ZCKJ6H29 || ZCKJD39H7 || ZCKJD37 || ZCKJ9 || ZCKJ21H29 || ZCKJ4H29 || ZCKJ5 || ZCKJ8H29 || ZCKJD31H29 || ZCKJ11 || ZCKJD37H7 || ZCKJ41H7 || ZCKJD35H29 || ZCKJ5H7 || ZCKJ21H7 || ZCKJ5H29 || ZCKJ1H29 || ZCKJ7H7 || ZCKJ6H7 || ZCKJD35H7 || ZCKJ2H7 || ZCKJ9H7 || ZCKJ7 || ZCKJ8 || ZCKJ1H7 || ZCKJD39 || ZCKJ7H29 || ZCKJ6 || ZCKJ2H29 |
| Device Short Name | ZCKE |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKJ |
| Head Type | plunger head |
Complementary
| Switch Actuation | on end |
|---|---|
| Head Material | metal |
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Operation | 10-120 °C |
|---|---|
| Environmental Characteristic | high temperature |
| Ambient Air Temperature For Storage | 10-120 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
