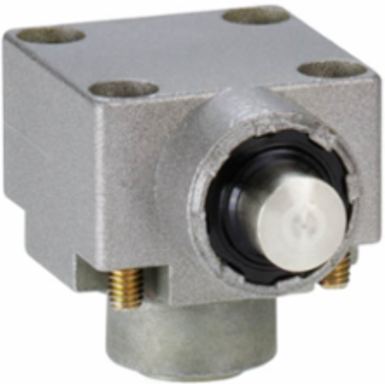

Telemecanique Sensors ZCKE63 Limit switch head, Limit switches XC Standard, ZCKE, side metal plunger
Telemecanique Sensors ZCKE63 Limit switch head, Limit switches XC Standard, ZCKE, side metal plunger
- MPN: ZCKE63
- PPN: TES-ZCKE63
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$72.88/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head supports positive opening operation. It provides switch actuation on end. The spring return side plunger supports lateral approach in 1 direction. This linear switch head is made of metal. It is intended for all industrial machine application such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKJ limit switches. It is associated with ZCKJ5H7, ZCKJ7H7, ZCKJD39H29, ZCKJ8, ZCKJD37H29, ZCKJ7, ZCKJD37, ZCKJ5, ZCKJD31, ZCKJ2H7, ZCKJ5H29, ZCKJ1H29, ZCKJD35H7, ZCKJ9H7, ZCKJ11H29, ZCKJD37H7 and ZCKJ7H29 bodies. European standard products (EN 50047) have positive opening contacts, even in snap action versions which allow use in safety applications.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Switch Actuation
- on end
- Head Material
- metal
Positive Openingwith
Specifications
- Type Of Approach
- lateral approach, 1 direction
- Movement Of Operating Head
- linear
- Type Of Operator
- side plunger spring return metal
- Associated Body
- ZCKJ5H7 || ZCKJ7H7 || ZCKJD39H29 || ZCKJ8 || ZCKJD37H29 || ZCKJ7 || ZCKJD37 || ZCKJ5 || ZCKJD31 || ZCKJ2H7 || ZCKJ5H29 || ZCKJ1H29 || ZCKJD35H7 || ZCKJ9H7 || ZCKJ11H29 || ZCKJ6 || ZCKJD37H7 || ZCKJ7H29 || ZCKJD31H29 || ZCKJ21H29 || ZCKJ9H29 || ZCKJ6H7 || ZCKJD35 || ZCKJ11 || ZCKJ8H7 || ZCKJD35H29 || ZCKJ1H7 || ZCKJ8H29 || ZCKJ6H29 || ZCKJ21H7 || ZCKJD39H7 || ZCKJ2 || ZCKJ11H7 || ZCKJ1 || ZCKJ21 || ZCKJ9 || ZCKJ2H29 || ZCKJD39 || ZCKJD31H7
- Device Short Name
- ZCKE
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCKJ
Head Typeplunger head
