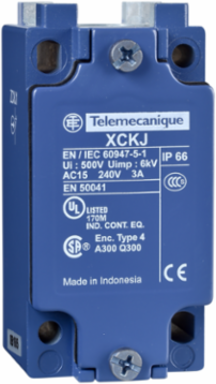

Telemecanique Sensors ZCKJKEQ3648G2 Limit switch body, Limit switches XC Standard, kit, 1 NC + 1 NO, SNAP ACTION

The ZCKJ limit switch body is a part of the OsiSense product range of limit switches. It is a fixed metal body with two normally closed and one normally open snap action contacts. The body has one cable entry tapped for 1/2in NPT conduit and screw clamp terminals for electrical connection. It is a limit switch body with a conventional enclosed thermal current of 6A and rated operating current of 1.5A at 240V AC and 0.1A at 250V DC. It is furnished with screw terminals for electrical connection. It is an IP66 and IK05 rated product. This fixed limit switch body is made of metal. Its dimensions are 52mm (width) x 30mm (depth) x 72mm (height). It weighs 0.21kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with the XCKJ limit switches. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
