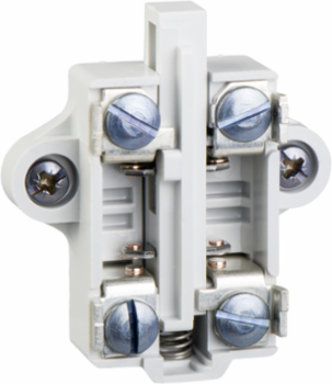

Telemecanique Sensors ZC1AZ12 Limit switch contact block, Limit switches XC Standard, 1NC+1 NO, break before make

MPN: ZC1AZ12
PPN: TES-ZC1AZ12
UNSPSC: 39121522

$76.30

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This 1 NC + 1 NO break before make contact block, is a separate part for the XC1AC12 limit switches. The contacts are silver plated. The XC1AC offer is a range of limit switches designed for very severe material handling applications.

Documentation & Downloads

Specifications

Key Specifications

Electrical Connection	screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contacts Type And Composition	1 NO + 1 NC
Positive Opening	without
Contacts Material	silver plated contacts
Product Compatibility	XC1AC12.
Number Of Poles	2

Series Name	special format
Range Of Product	OsiSense XC
Contact Operation	slow-break, break before make
Product Or Component Type	limit switch contact block
Device Short Name	ZC1A

Complementary

[Ui] Rated Insulation Voltage	500 V ACIEC 60947-5-1 \|\| 500 V ACNF C 20-040 \|\| 600 V DCIEC 60947-5-1 \|\| 600 V DCNF C 20-040 \|\| 600 V ACCSA C22.2 No 14 \|\| 600 V DCCSA C22.2 No 14
Short-Circuit Protection	10 A cartridge fuse gG
Contacts Insulation Form	Za
Maximum Resistance Across Terminals	8 mOhm IEC 60255-7 category 3

Electrical Durability	1000000 cycles, AC-15 110 V, 900 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15 230 V, 1900 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15 48 V, 450 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13 110 V, 100 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13 230 V, 95 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13 48 V, 100 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 3000000 cycles, AC-15 110 V, 350 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 3000000 cycles, AC-15 230 V, 430 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 3000000 cycles, AC-15 48 V, 170 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 3000000 cycles, DC-13 110 V, 40 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 3000000 cycles, DC-13 230 V, 33 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 3000000 cycles, DC-13 48 V, 35 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Minimum Actuation Speed	6 m/min
[Ithe] Conventional Enclosed Thermal Current	10 A

Offer Sustainability

Rohs Exemption Information	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
