Telemecanique Sensors

Telemecanique Sensors 9007CT52 Limit switch base, 9007, receptacle c +options

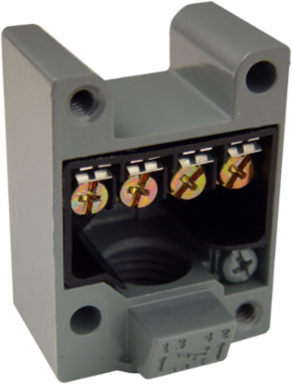

Limit switch base, 9007, receptacle c +options
  • MPN: 9007CT52
  • UPC: 785901812265
  • PPN: TES-9007CT52
  • UNSPSC: 39122213

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$35.60/ EA

Description

Limit switch base, 9007, receptacle c +options

Specifications

Environment

Ambient Air Temperature For Storage
-20-185 °F
Electrical Shock Protection Class
class 0 IEC 61140
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP67 conforming to IEC 60529
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Shock Resistance60 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat

Contractual warranty

Warranty
18 months

Offer Sustainability

Environmental Disclosure
ENVPEP111160EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Complementary

Height
2.26-2.26 in
Associated Head
9007C
Width
1.55 in
Depth
0.9 in
Mechanical Durability10000000 cycles
Body Materialzinc
Associated Connection Component9007CO52
Net Weight0.34 kg

Specifications

Series Name
heavy duty
Body Type
compact plug-in
Environmental Characteristic
standard environment
Ambient Air Temperature For Operation
-20-185 °F standard environment
Product Or Component Type
limit switch base
Device Short Name
9007C
Sale Per Indivisible Quantity1
Range Of Product9007
Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2
Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1
Product Compatibility9007C
