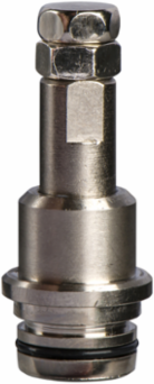

Telemecanique Sensors ZCE14 Limit switch head, Limit switches XC Standard, ZCE, metal end plunger ajustable
- MPN: ZCE14
- PPN: TES-ZCE14
- UNSPSC: 39122213
CAD
$56.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides positive opening operation. The metal adjustable spring return end plunger supports vertical approach in 1 direction. The movement of limit switch operating head is linear. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKP, XCKT, XCMD and XCKD series limit switches, and various ZC bodies. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | vertical approach, 1 direction |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | end plunger spring return metal adjustable) |
| Associated Body | ZCP35 || ZCP29 || ZCT27N12 || ZCMD37L2 || ZCD37 || ZCMD81L5 || ZCMD25L1 || ZCP26 || ZCMD39L1 || ZCD31 || ZCD28 || ZCP39 || ZCMD61M12 || ZCMD81L2 || ZCT26P16 || ZCD21M12 || ZCP21 || ZCD26 || ZCMD21L08U78 || ZCP25 || ZCT25P16 || ZCP31 || ZCMD37L5 || ZCT28G11 || ZCT21G11 || ZCMD39L5 || ZCT25G11 || ZCD39 || ZCMD41L1 || ZCT21P16 || ZCP28 || ZCMD41L5 || ZCMD81L1 || ZCMD69C12 || ZCMD39L2 || ZCD25 || ZCP27 || ZCD29M12 || ZCT28N12 || ZCT26N12 || ZCMD25L5 || ZCMD21M12 || ZCMD21C12 || ZCD21 || ZCMD21L08R12 || ZCMD41L2 || ZCP29M12 || ZCT21N12 || ZCP37 || ZCMD61C12 || ZCMD25L2 || ZCT28P16 || ZCT26G11 || ZCMD21L1 || ZCMD29L1 || ZCMD21L5 || ZCMD37L1 || ZCD29 || ZCMD29C12 || ZCMD29L2 || ZCMD21L2 || ZCT27P16 || ZCD27 || ZCD35 || ZCMD29L5 || ZCP21M12 || ZCT25N12 || ZCT27G11 |
| Device Short Name | ZCE |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKD || XCKP || XCMD || XCKT |
| Head Type | plunger head |
Complementary
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
