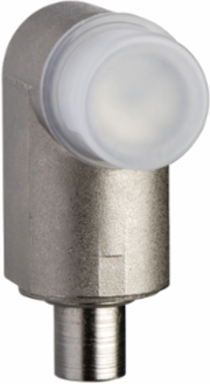

Telemecanique Sensors ZCE63 Limit switch head, Limit switches XC Standard, ZCE, side metal plunger

MPN: ZCE63
PPN: TES-ZCE63
UNSPSC: 39122213

$34.90

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch head, Limit switches XC Standard, ZCE, side metal plunger

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	linear
Type Of Operator	side plunger spring return metal
Associated Body	ZCP26 \|\| ZCP29 \|\| ZCP37 \|\| ZCD27 \|\| ZCMD41L5 \|\| ZCMD39L2 \|\| ZCMD21L08R12 \|\| ZCT25N12 \|\| ZCP21M12 \|\| ZCD28 \|\| ZCMD69C12 \|\| ZCMD61C12 \|\| ZCD25 \|\| ZCT27G11 \|\| ZCD37 \|\| ZCT28N12 \|\| ZCMD39L5 \|\| ZCT27P16 \|\| ZCMD25L1 \|\| ZCP21 \|\| ZCMD37L5 \|\| ZCMD25L5 \|\| ZCP29M12 \|\| ZCMD21L08U78 \|\| ZCD29M12 \|\| ZCD21 \|\| ZCD39 \|\| ZCT28G11 \|\| ZCMD37L1 \|\| ZCMD81L1 \|\| ZCMD61M12 \|\| ZCMD37L2 \|\| ZCT28P16 \|\| ZCT26N12 \|\| ZCMD29C12 \|\| ZCT21N12 \|\| ZCP31 \|\| ZCT25G11 \|\| ZCMD21M12 \|\| ZCT26P16 \|\| ZCMD41L1 \|\| ZCMD21L5 \|\| ZCMD21L2 \|\| ZCMD29L5 \|\| ZCMD21L1 \|\| ZCD29 \|\| ZCT21P16 \|\| ZCP27 \|\| ZCP28 \|\| ZCP35 \|\| ZCP39 \|\| ZCP25 \|\| ZCMD29L2 \|\| ZCD35 \|\| ZCT26G11 \|\| ZCD21M12 \|\| ZCD26 \|\| ZCT25P16 \|\| ZCMD25L2 \|\| ZCMD81L5 \|\| ZCT27N12 \|\| ZCMD81L2 \|\| ZCD31 \|\| ZCMD21C12 \|\| ZCMD41L2 \|\| ZCMD29L1 \|\| ZCT21G11 \|\| ZCMD39L1
Type Of Approach	vertical approach, 1 direction
Product Compatibility	XCKT \|\| XCKP \|\| XCMD \|\| XCKD

Range Of Product	Telemecanique Limit switches XC Standard
Product Or Component Type	limit switch head
Head Type	plunger head
Series Name	standard format
Device Short Name	ZCE

Complementary

Positive Opening	with

Environment

Ambient Air Temperature For Operation	-25-70 °C
Environmental Characteristic	standard environment

Ambient Air Temperature For Storage	-40-70 °C

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110614EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
