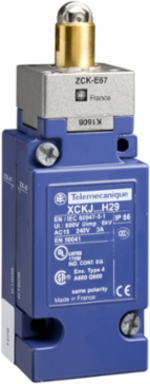

Telemecanique Sensors XCKJ1305955 Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 600 V AC, 10 A
- MPN: XCKJ1305955
- PPN: TES-XCKJ1305955
- UNSPSC: 39122213
CAD
$387.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 600 V AC, 10 A
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Contact Operation
- snap action
- Body Material
- zamak
- Head Material
- zamak
- Device Short Name
- XCKJ
Range Of ProductTelemecanique Limit switches XC Standard
Fixing Modeby the body
Product Or Component Typelimit switch
Materialmetal
Complementary
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
- Terminals Description Iso N°1
- (11-12)NC || (13-14)NO
- Electrical Durability
- 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Depth
- 36 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
Height84-84 mm
Short-Circuit Protection10 A cartridge fuse gG
Contacts Insulation FormZb
Number Of Steps1
Width43 mm
Net Weight0.455 kg
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- CCC || UL || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Overvoltage Category
- class I IEC 61140 || class I NF C 20-030
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Protective Treatment
- TH
Ik Degree Of ProtectionIK07 EN 50102
Ambient Air Temperature For Storage-40-70 °C
StandardsUL 508 || IEC 60947-5-1 || EN 60947-5-1 || EN 60204-1 || CENELEC EN 50041 || IEC 60204-1 || CSA C22.2 No 14
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 conforming to IEC 60529
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
