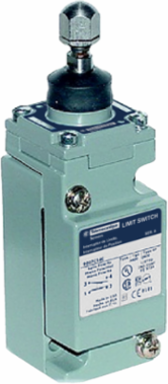

Telemecanique Sensors 9007C54ED NEMA limit switch, 9007C, heavy duty, standard, steel spring return top plunger, adjustable, 10A, 600V, 1NO/1NC, NEMA 4

MPN: 9007C54ED
UPC: 785901541943
PPN: TES-9007C54ED
UNSPSC: 39122213

$311.53

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

These industrial heavy duty limit switches are applied in almost any environments. This adjustable top push rod plunger limit switch has a standard body and receptacle for most applications. Limit switch has one normally open and one normally closed contact. The snap action contacts will change state as the top push rod is moved. Contacts have an A600 and Q600 inductive ratings and 10A resistive rating. The adjustable top push rod plunger head requires 3 lb. of force to operate. This limit switch is 5.22 inches tall, 1.55 inches wide and 1.79 inches deep. This limit switch is NEMA 1, 2 4, 6, 6P, 12 and 13 rated. It is also rated IP67. Switch has a 0.50 inch conduit entry with 14 NPT. Limit switch is UL listed and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug-in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	linear
Electrical Connection	screw-clamp terminals AWG 22...AWG 12), 1-2
Cable Entry	1 entry for 1/2" - 14 NPT ANSI B1.20.1
Material	metal
Head Type	plunger head
Type Of Approach	vertical approach, 1 direction
Contacts Type And Composition	NC-NO
Body Type	plug-in
Contact Operation	snap action
Device Short Name	9007C

Range Of Product	9007
Fixing Mode	by the body
Product Or Component Type	limit switch
Type Of Operator	stainless steel spring return plunger adjustable)
Switch Actuation	on end
Series Name	heavy duty
Sale Per Indivisible Quantity	1
Positive Opening	without
Product Specific Application	standard box
Number Of Poles	1

Complementary

Height	5.22-5.22 in
Contacts Material	silver contacts
Contact Form	Form Z
Net Weight	1.25 lb(US)
[Ui] Rated Insulation Voltage	600 V 3)UL 508 contact block \|\| 600 V 3)CSA C22.2 No 14 contact block
[Ie] Rated Operational Current	1.2 A 600 V AC, A600 NEMA \|\| 0.1 A 600 V DC, Q600 NEMA
Body Material	zinc
[Uimp] Rated Impulse Withstand Voltage	2.5 kV AC 1 min CE \|\| 2.2 kV AC 1 min UL \|\| 2.64 kV AC 1 s CSA
Depth	1.79 in
Repeat Accuracy	+/- 0.001 in linear travel of cam

Terminals Description Iso N°1	(3-4)NO \|\| (1-2)NC
[Ithe] Conventional Enclosed Thermal Current	10 A
Head Material	zinc
Local Signalling	without
Short-Circuit Protection	10 A CC non-time delay
Mechanical Durability	10000000 cycles
Switch Function	SPDT-DB
Width	1.55 in
Electrical Durability	1000000 cycles

Environment

Ambient Air Temperature For Operation	-20-185 °F standard environment
Vibration Resistance	25 gn 10-150 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-20-185 °F
Nema Degree Of Protection	NEMA 1 Nema type 250 \|\| NEMA 2 Nema type 250 \|\| NEMA 4 Nema type 250 \|\| NEMA 6 Nema type 250 \|\| NEMA 6P Nema type 250 \|\| NEMA 12 Nema type 250 \|\| NEMA 13 Nema type 250
Protective Treatment	epoxy powder coat

Shock Resistance	60 gn 9 ms IEC 60068-2-27
Ip Degree Of Protection	IP67 IEC 60529
Environmental Characteristic	standard environment
Electrical Shock Protection Class	class 0 IEC 61140

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP111160EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
