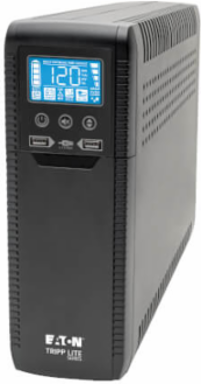

Tripp Lite ECO1000LCD Line-Interactive UPS with USB and 8 Outlets - 120V, 1000VA, 600W, 50/60 Hz, AVR, ECO Series
Tripp Lite ECO1000LCD Line-Interactive UPS with USB and 8 Outlets - 120V, 1000VA, 600W, 50/60 Hz, AVR, ECO Series
- MPN: ECO1000LCD
- UPC: 037332205148
- PPN: TRP-ECO1000LCD
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$391.74/ EA
Description
Line-Interactive UPS with USB and 8 Outlets - 120V, 1000VA, 600W, 50/60 Hz, AVR, ECO Series
Features
- Protects valuable equipment from dangers posed by brownouts, surges and line noise
- Battery backup allows enough time to save files and safely shut down during blackouts
- 8 NEMA 5-15R outlets provide power to desktop PC or home theater systems
- Highly efficient UPS includes 3 ECO outlets, to help you save energy and money
- Easy-to-read digital display reports important UPS and power information in real time
- 3-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Energy-Saving 1000VA/600W USB Battery Backup for PCs or Home Theater Systems
- Allows Time to Back Up Critical Files During a Blackout
- Connects Your Equipment to 8 NEMA 5-15R Outlets
- ENERGY STAR-Certified to Help You Save Money and Protect the Environment
- Even Backs up Essential Data When You Aren’t Around
- Automatic Voltage Regulation (AVR) Corrects Low-Voltage Conditions
- 316 Joules Fight Back Against Unexpected Power Surges
- USB Charging Ports Keep Mobile Devices Fully Powered for Immediate Use
- Restarts Automatically After a Long Outage
- Combats Electromagnetic Interference That Can Harm Equipment
- Easy-to-Read LCD Reports Real-Time UPS and Power Status

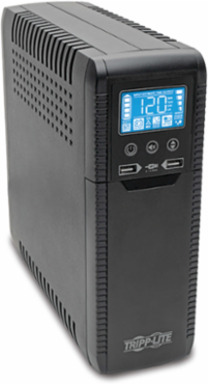

- Tower Form Factor for Easy Placement in Your Workspace or Media Center
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 316
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 2 min. (600w)
- DC System Voltage (VDC)
- 12
- Internal UPS Replacement Battery Cartridge
- RBC51
Half Load Runtime (min.)7 min. (300w)
Battery Recharge Rate (Included Batteries)7 hours from 10% to 90%
Expandable RuntimeNo
Certifications
- UPS Certifications
- ENERGY STAR Qualified; Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsUL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION
Physical

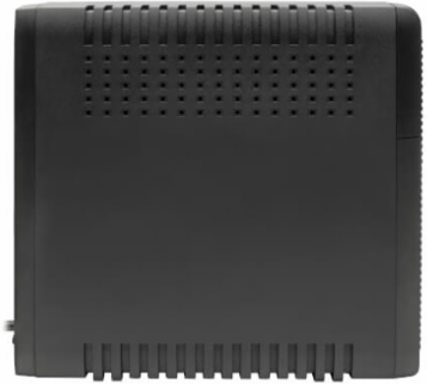

- Cooling Method
- Convection
- Primary Form Factor
- Tower
- Primary UPS Height (mm)
- 279
- Shipping Dimensions (hwd / in.)
- 14.37 x 6.22 x 14.17
- UPS Housing Material
- ABS
- UPS Power Module Weight (kg)
- 8.35
Installation Form Factors Supported with Included AccessoriesTower
Primary UPS Depth (mm)288
Primary UPS Width (mm)99
Shipping Weight (lbs.)19.94
UPS Power Module Dimensions (hwd, in.)11 x 3.9 x 11.33
UPS Power Module Weight (lbs.)18.4
User Interface, Alerts & Controls

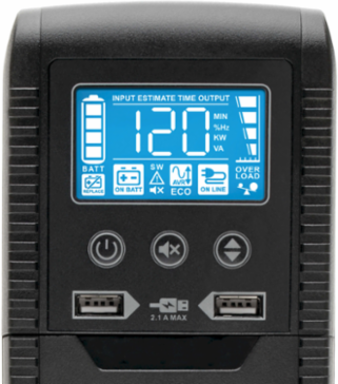

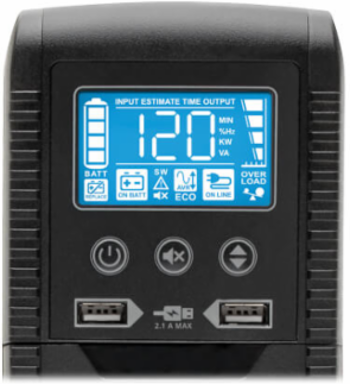

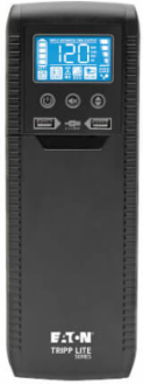

- Front Panel LCD Display
- LCD screen offers detailed UPS status information, configuration options and error message reporting; STATUS INFORMATION input voltage, output voltage, input frequency, output frequency, load in VA, load in watts, battery charge level (4 bar graph), estimated runtime remaining (minutes) and UPS operating mode; CONFIGURATION OPTIONS Eco-mode off/on, alarm disable; ERROR MESSAGES Replace battery, overload and critical fault (see manual for complete listing)
- Alarm Cancel Operation
- Temporary alarm cancel and silent-mode operation is available using front-panel MUTE button (see manual)
SwitchesON / OFF / TEST Button offers power control and self-test operation; MUTE Button enables alarm-cancel and silent-mode opeation; SELECT Button is used to toggle LCD condition displays
Audible AlarmAudible alarm indicates low battery, fault, overload and replace battery condition warnings
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation during brownouts as low as 86V (60Hz operation) / 105V (50Hz operation)
Undervoltage CorrectionInput voltages between 86 and 105 are boosted by 23% (60Hz operation only)
Input
- Rated input current (Maximum Load)
- 12A

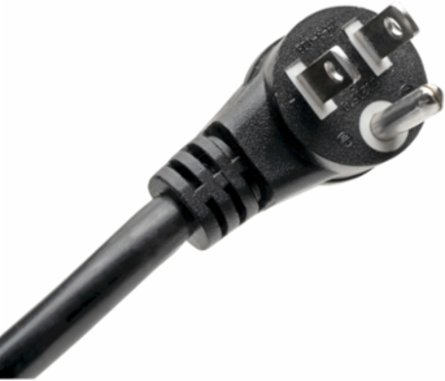

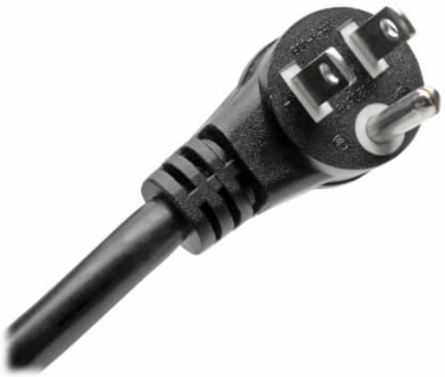

- UPS Input Connection Type
- 5-15P
- UPS Input Cord Length (ft.)
- 6
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers15A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 1000
- Output Watt Capacity (Watts)
- 600
- Frequency Compatibility
- 50 / 60 Hz
- Output Voltage Regulation (Line Mode)
- 120V (+18% / -13%)

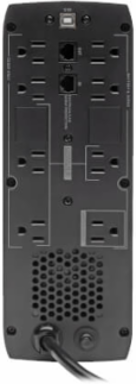

- UPS Output Receptacles (Surge Suppression Only)
- 4 UPS outlets, 4 surge-only outlets
- Output AC Waveform (Battery Mode)
- PWM sine wave

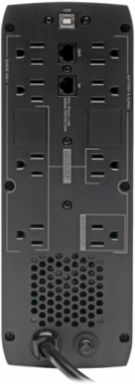

- Output Receptacles
- (8) 5-15R
Output kVA Capacity (kVA)1.0
Nominal Voltage Details120v nominal output in battery mode
Frequency Compatibility DetailsAutomatic frequency selection
Output Voltage Regulation (Battery Mode)120V (±10%)
Output AC Waveform (AC Mode)Sine wave
Nominal Output Voltage(s) Supported110V; 115V; 120V
Individually Controllable Load BanksNo
Communications
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Communications Cable
- USB cable included
- Communications Interface
- USB (HID enabled)
PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- Up to 95%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- 96%
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)98
Overview
- UPC Code
- 037332205148
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Yes
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
High Availability UPS FeaturesBattery Independent Restart
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 6 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 142V
Low Voltage Transfer to Battery Power (Setpoint)86V during 60Hz operation (105V during 50Hz operation)
