Linergy TR Terminal Block, 4 mm2, Protective Earth, Set of 50
Schneider Electric

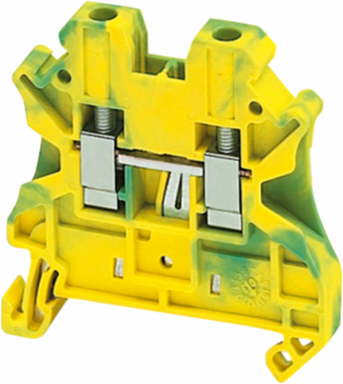

Schneider Electric NSYTRV42PE Linergy TR Terminal Block, 4 mm2, Protective Earth, Set of 50

  • MPN: NSYTRV42PE
  • PPN: SCH-NSYTRV42PE
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $13.83

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 4 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, Spain, France, United States

    Physical Attributes

    Color
    green-yellow
    Wire Stripping Length9 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Cable Cross Section
    0.14-6 mm², solid, 0.2-4 mm², flexible with cable end, 0.14-6 mm², flexible without cable end
    Dielectric Loss
    0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
    Surface Resistance
    1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
    Certificate Agency
    VDE, CSA, GL, DNV, UL
    Carbon Footprint Of The Distribution Phase [A4]
    0.001660714, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.000702487
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    6 kg CO2 eq., 5.932823377
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Compatibility Code
    terminal block
    Device Short Name
    TRV
    Dielectric Strength
    1000 V IEC 60243-1
    Material
    polyamide 6/6: insulating case
    Nominal Cross Section
    4 mm²
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    terminal block
    Range
    Linergy
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Terminal Block Type
    protective earth
    Total Lifecycle Carbon Footprint
    6 kg CO2 eq.
    Pep Code
    ENVPEP2309022EN
    Pep Verification Date
    2023-12-03
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    20
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    47.5 mm
    Width Nominal
    6.2 mm
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    Yes
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
    Resistivity10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
    Tool Typeconnection screwdriver, disconnection screwdriver
    Connections - Terminals1 x screw terminal upstream, 1 x screw terminal downstream
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.031103482, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.068653177
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date2518
    China Rohs In ScopeNo
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Connection Positionsideways
    Dielectric Constant3.7 at 1 MHz
    Flame RetardanceV0 0.8 mm UL 94
    Mounting Modeclip-on
    Number Of Terminals2
    Product NameLinergy TR
    Quantity Per Setset of 50
    Range Of ProductLinergy
    Software Versionv5.9.4
    Terminal Block Level1
    Tightening Torque0.6-0.8 N.m
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionConnect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm2, a rated voltage 690 V.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; GE
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential, In %64
    Length Total47.7 mm
    Halogen-free StatusHalogen free plastic parts product
    Package Weight(Lbs)13.000 g
    Take-backNo

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Silicon Free
    Yes
    Environmental Disclosure
    ENVPEP2309022EN
    Halogen Content Performance
    Halogen free plastic parts product
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-12-03
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
    Halogene PerformanceHalogen free plastic parts product
    Mercury FreeYes
    Carbon Footprint6.034943236
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Product CompatibilitySpacial enclosures
    Pep CodeENVPEP2309022EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review

    General Attributes

    Product Or Component Type
    terminal block
    Range Of ProductLinergy

    ETIM

    ETIM 8
    EC000901
    ETIM 9EC000901

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Number Of Measurement Input
    2
