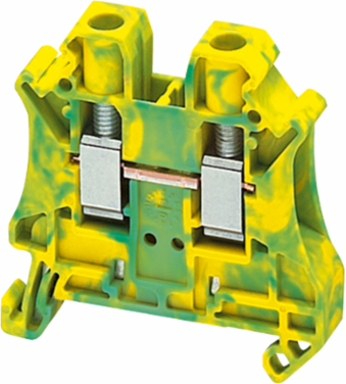

Schneider Electric NSYTRV62PE Linergy TR 6mm² Protective Earth Terminal Block Set of 50
Schneider Electric NSYTRV62PE Linergy TR 6mm² Protective Earth Terminal Block Set of 50
- MPN: NSYTRV62PE
- PPN: SCH-NSYTRV62PE
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$14.45/ EA
Description
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 6 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Specifications
Environment
- Product Certifications
- ATEX || cURus || VDE || EAC || IEC-Ex || DNV || CSA || LR || GL
- Dielectric Strength
- 1000 V IEC 60243-1
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2309022EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free plastic parts product
Complementary
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Number Of Terminals
- 2
- Cable Cross Section
- 0.2-10 mm², solid || 0.2-10 mm², flexible without cable end || 0.2-6 mm², flexible with cable end
- Number Of Measurement Input
- 2
- Net Weight
- 22.74 g
- Wire Stripping Length
- 10 mm
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
- Range Compatibility
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Product Compatibility
- Spacial enclosures
Height47.5 mm
Connections - Terminals1 x screw terminal upstream || 1 x screw terminal downstream
Connection Positionsideways
Tool Typeconnection screwdriver || disconnection screwdriver
Flame RetardanceV0 0.8 mm UL 94
Resistivity10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Materialpolyamide 6/6: insulating case
Width8.2 mm
Tightening Torque1.5-1.8 N.m
Creep Resistance500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Specifications
- Terminal Block Type
- protective earth
- Product Name
- Linergy TR
- Range
- Linergy
- Terminal Block Level
- 1
- Quantity Per Set
- set of 50
- Device Short Name
- TRV
Product Or Component Typeterminal block
Length47.7 mm
Mounting Modeclip-on
Nominal Cross Section6 mm²
Colourgreen-yellow
