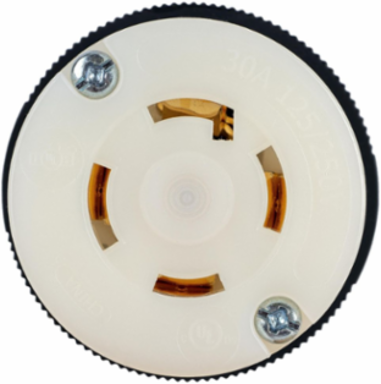

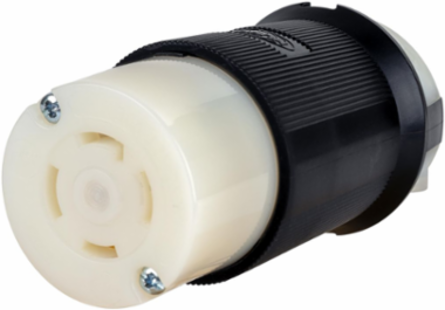

Hubbell Wiring Device-Kellems HBL2713ST EdgeConnectTM Twist-Lock 30A 125/250V Female Connector, L14-30R, 3-Pole, Screwless Terminal, Black and White
- MPN: HBL2713ST
- UPC: 783585719085
- PPN: HBL-HBL2713ST
- UNSPSC: 39121406
CAD
$153.34
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screwless Terminal, Black and White
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Funnel shaped wire entry for ease of termination.
- Superior cord grip design protects terminations from excess strain
- EdgeConnect™ Technology, Screwless Termination
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Width | 2.400 in |
| Size | Standard Sized Product |
| Connection | EdgeConnect™ Screwless Termination |
| Environmental Conditions | IP20 Suitability |
| NEMA Rating | L14-30R |
| Number of Wires | 4 |
| Special Features | EdgeConnect™ Technology, Screwless Termination |
| Temperature Rating | Maximum Continuous 75°C, Minimum -40°C (w/o impact) |
| Voltage Rating | 125/250 V |
| General Literature Asset 2 Display Text | EdgeConnect™ Technology FAQ |
| Mounting Type | Screw Mount |
| Number Of Poles | 3 |
| Style | Locking Devices |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material | Nylon |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 30 |
| Pallet Weight | 0.000 lb. |
| Current / Amperage Rating | 30 A |
|---|---|
| Industry Standard(s) | Listed to UL 498, Fed.Spec. W-C-596, Certified to CSA C22.2 No.42 |
| Color | Black and White |
| Dielectric Strength | Withstands 3,000V minimum |
| Mounting | Screw Mount |
| Number of Poles | 3 |
| Phase | Single Phase |
| Standard | Listed to UL 498, Fed.Spec. W-C-596, Certified to CSA C22.2 No.42 |
| Type | Connector |
| General Literature Asset 1 Display Text | EdgeConnect™ Technology |
| General Literature Asset 3 Display Text | EdgeConnect™ Termination vs Standard Push Wire |
| Nema Rating | L14-30R |
| Number Of Wires | 4 |
| Class Code | A08 |
| Harmonization Code | 8536694020 |
| Sub Class Code | A08A110 |
| Series | EdgeConnect™ Twist-Lock® Series |
| BOX SIZE | 10.100x12.300x7.600 (in) |
| Carton - Number of Sub Packs | 30 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585719085 |
| Pallet - GTIN - Package | 70783585719084 |
| NAICS Code | 335931A102 |
