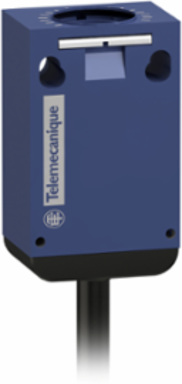

Telemecanique Sensors ZCMV41L03 Limit switch metal body 2NO+2NC snap, 0.3m cable
- MPN: ZCMV41L03
- PPN: TES-ZCMV41L03
- UNSPSC: 39122213
CAD
$154.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch body has 2 NC and 2 NO, form Zb, snap action contacts. It is a limit switch body with a conventional enclosed thermal current of 3A and rated operating current of 1A at 24V DC and 3A at 24V AC. It is furnished with pre-wired cable for electrical connection. This fixed limit switch body is made of Zamak. Its dimensions are 32mm (width) x 21mm (depth) x 68mm (height). It weighs 0.065kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with ZCMD limit switches. The associated heads are ZCE29, ZCE02, ZCE06, ZCE07, ZCE08, ZCE65, ZCE66, ZCE01, ZCE63, ZCE21, ZCE106, ZCE016 and ZCE026. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- zamak
- Number Of Poles
- 4
Associated HeadZCE29 || ZCE02 || ZCE06 || ZCE62 || ZCE09 || ZCE13 || ZCE67 || ZCE10 || ZCE14 || ZCE07 || ZCE08 || ZCE65 || ZCEG1 || ZCEF0 || ZCE24 || ZCE11 || ZCE27 || ZCE64 || ZCEF2 || ZCE28 || ZCE66 || ZCE01 || ZCE63 || ZCE21 || ZCE106 || ZCE016 || ZCE026
Designminiature
Contacts Type And Composition2 NO + 2 NC
Contact Operationsnap action
Device Short NameZCMD
Complementary
- Height
- 68-68 mm
- Minimum Actuation Speed
- 0.01 m/min
- Contacts Material
- silver plated contacts
- Net Weight
- 0.065 kg
- Electrical Durability
- 10000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- [Ie] Rated Operational Current
- 1 A 24 V, DC-13 EN/IEC 60947-5-1 appendix A || 3 A 24 V, AC-14 IEC 61131-2 Type 1
- Depth
- 21 mm
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
Short-Circuit Protection4 A cartridge fuse gG
Electrical Connectionpre-wired cable
[Ithe] Conventional Enclosed Thermal Current3 A
[Uimp] Rated Impulse Withstand Voltage800 V IEC 60664
[Ui] Rated Insulation Voltage24 V 3)UL 508 || 24 V 3)CSA C22.2 No 14 || 24 V 3)IEC 60947-5-1
Contacts Insulation FormZb
Width32 mm
Product CompatibilityXCMD
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110612EN
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
Ambient Air Temperature For Storage-40-70 °C
