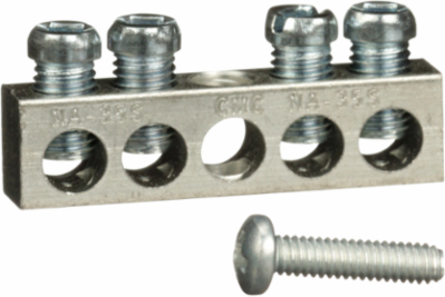

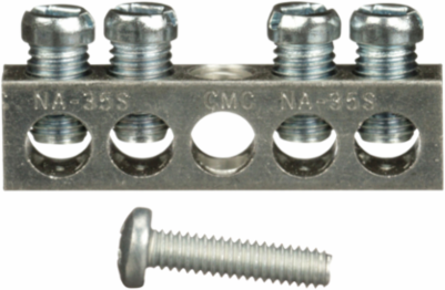

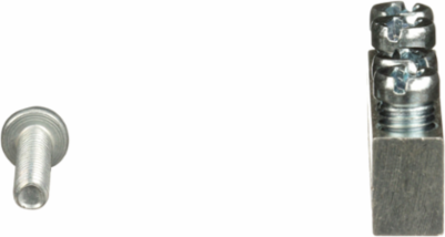

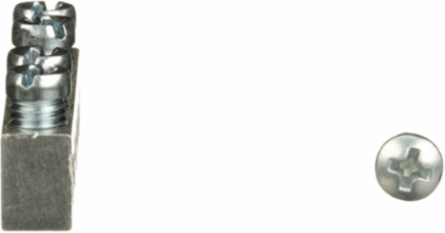

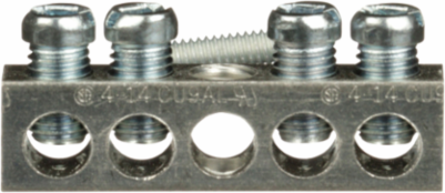

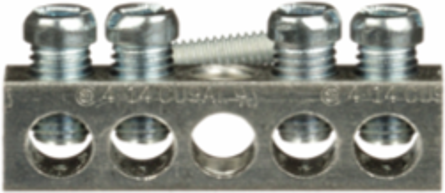

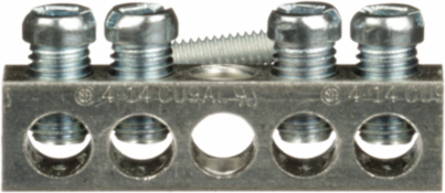

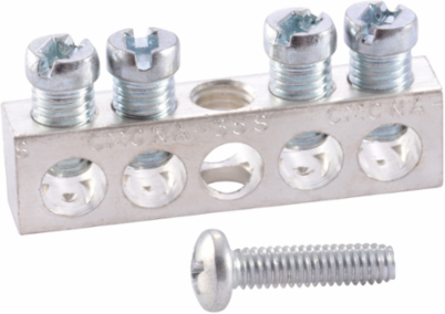

Square D PK4GTABP Load center accessory, QO/Homeline, ground bar kit, 4 terminals

Load center accessory, QO/Homeline, ground bar kit, 4 terminals
Load center accessory, QO/Homeline, ground bar kit, 4 terminals
Load center accessory, QO/Homeline, ground bar kit, 4 terminals
Load center accessory, QO/Homeline, ground bar kit, 4 terminals
Load center accessory, QO/Homeline, ground bar kit, 4 terminals
Load center accessory, QO/Homeline, ground bar kit, 4 terminals
  • MPN: PK4GTABP
  • UPC: 785901422020
  • PPN: SCH-PK4GTABP

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1868.06/ EA

Description

QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center accessory is grounding bar kit. This ground bar kit is a bulk package of 100 grounding bars. This grounding bar is UL component recognized and CSA certified.

Specifications

Complementary

Provided Equipment
2 screw
Tightening Torque
30 lb.in || mounting screw 30 lb.in || 20 lb.in, AWG 14...AWG 10, copper || 20 lb.in, AWG 12...AWG 10, aluminum || 35 lb.in, AWG 6...AWG 4 || 25 lb.in, AWG 8 || 25 lb.in, AWG 14...AWG 12, copper || 25 lb.in, AWG 12...AWG 10, aluminum
Awg Gauge
AWG 14...AWG 4 copper || AWG 12...AWG 4 aluminum
Number Of Connectors
4
Height.437 in
Bar Length1.67 in
Depth0.312 in
Device Mountingdirect mounting back of enclosure

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2212001
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes

Specifications

Range Of Product
QO || Homeline
Product Or Component Typebar
