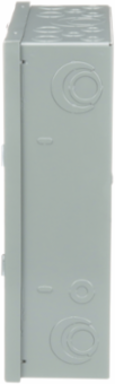

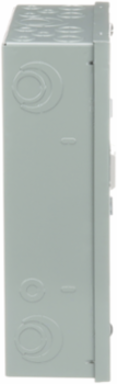

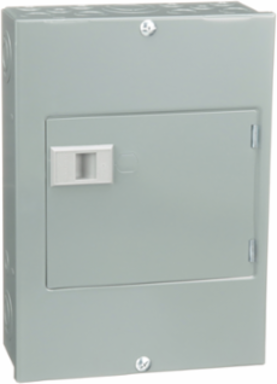

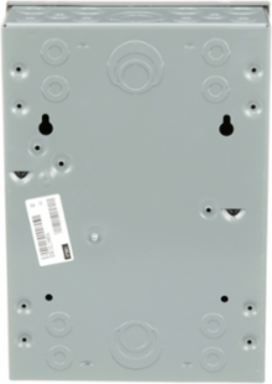

Square D QO612L100DS QO Loadcentre 240V 100A 1 Phase 6 Spaces NEMA 1
Square D QO612L100DS QO Loadcentre 240V 100A 1 Phase 6 Spaces NEMA 1
- MPN: QO612L100DS
- UPC: 785901785620
- PPN: SCH-QO612L100DS
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$187.48/ EA
Description
QO® Circuit Breaker Loadcentres, QO612L100DS, from Square D® are Underwriters Laboratories (UL) Listed and CSA certified panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a door surface cover, and is UL rated.
Specifications
- Voltage
- 120/240 V AC
- Number of Phases
- 1 phase
- Ambient Air Temperature for Operation
- -5 °C to 40 °C
- Loadcentre Type
- Fixed mains (lugs)
- Number of Circuits
- 12
- Width
- 226 mm
- Electrical Connection
- Lugs
- Wire Size
- AWG 8...AWG 1 aluminum/copper
- Material
- Tin plated aluminum busbar
- Surface Finish
- Baked enamel gray
- Device Composition
- Grounding bar (ordered separately)
- Product Certifications
- UL Listed, CSA Certified
Current Rating100 A
Short-Circuit Current Rating10 kA
Product TypeLoadcentre
Number of Spaces6
Height319 mm
Depth95 mm
Wiring Configuration3-wire
Tightening Torque50 lb.in
Enclosure MaterialWelded sheet steel
Cover TypeSurface cover with door
Enclosure RatingNEMA 1 indoor
Country of OriginMexico
