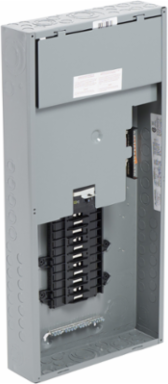

Schneider Electric QO324MB100 QO Load Center 3 Phase 100A 24 Circuits NEMA 1
- MPN: QO324MB100
- UPC: 785901751090
- PPN: SCH-QO324MB100
- UNSPSC: 39121101
CAD
$957.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 24 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. This product is UL rated.
Features
- The QO324MB100 comes pre-equipped with a 100A factory-installed main breaker, serving as a dedicated service disconnect for your electrical system. This eliminates the need for separate upstream disconnects in many applications, simplifying your installation and ensuring rapid power shut-off for improved job site safety.
- Designed specifically for 208Y/120V AC or 240/120V AC 3-phase systems, this load center provides the balanced power distribution necessary for light commercial machinery and professional HVAC units. It allows for the efficient operation of 3-pole breakers, ensuring your facility can handle high-torque motors and sensitive electronics without the phase-loss risks of single-phase setups.
- This QO Load Center features a rugged, cold-rolled steel NEMA 1 enclosure designed specifically for indoor environments like garages, basements, or utility rooms. The neutral gray baked-enamel finish provides superior corrosion resistance, ensuring the housing remains professional and intact while protecting your critical electrical distribution components for decades.
- Featuring the industry-leading shielded bus bar and "QO" plug-on mounting, this panel allows for the fastest breaker installation in the industry. The lack of screw-on connections for branch breakers not only speeds up the "rough-in" phase but also provides a more secure, vibration-resistant electrical contact that reduces the risk of overheating and premature component failure.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 95 mm |
| Weight | 9798 g |
|---|
Complementary Attributes
| Line Rated Current | 100 A |
|---|
| Ue Rated Operational Voltage | 120/240 V AC |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 3.3120739286, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0077311572, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 0.1 kg CO2 eq., 0.087341 |
| Local Publishable Date | 2026-07-14 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Awg Gauge | 4 AWG...250 kcmil aluminium/copper |
| Cover Type | order separately |
| Electrical Connection | lugs |
| Energy Efficiency Optimized | False |
| Load Center Type | main breaker |
| Number Of Circuits | 24 |
| Phase | 3 phase 4 wires |
| Product Or Component Type | Load Center |
| Returnability | Yes |
| Surface Finish | baked enamel Gray |
| Tightening Torque | Cover 20 lb.in |
| Database Version | 2022-01 |
| Height Nominal | 758 mm |
| Certificate Agency | cULus |
| Customs Code | 8537109150 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 1 kg CO2 eq., 1.0272976576 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 71 kg CO2 eq., 70.7040970588 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2436 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Box Number | 10 |
| Device Composition | grounding bar (ordered separately) |
| Enclosure Material | welded sheet steel |
| Installation Direction | vertical |
| Material | tin plated copper: busbar |
| Number Of Spaces | 24 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 75 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 362 mm |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Current | 22 kA |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 88 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001EN |
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2212001EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Operation | -5 °C, -5 °C, 40 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 75.1385408021 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Phase | 3 phase 4 wires |
|---|---|
| Range Of Product | QO |
| Product Or Component Type | Load Center |
|---|
ETIM
| ETIM 8 | EC000214 |
|---|---|
| ETIM 10 | EC000214 |
| ETIM 9 | EC000214 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
