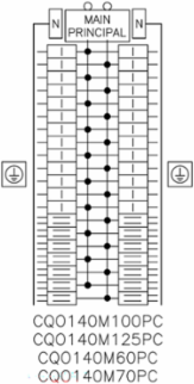

Square D CQO140M100PC QO Loadcentre 1 Phase 40 Spaces 54 Circuits 100A Main Breaker NEMA 1
- MPN: CQO140M100PC
- UPC: 785901782469
- PPN: SCH-CQO140M100PC
CAD
$198.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 40 spaces and 54 circuits. This system provides 100A main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is CSA rated.
Features
- Offering an extensive 40-space chassis that expands up to 54 single-pole circuits using space-saving tandem breakers, this 100-amp load center delivers massive circuit density within a single enclosure. It ensures your infrastructure easily accommodates heavy modern loads like EV charging stations, heat pumps, hot tubs, and multi-room additions without requiring the extra footprint or expense of a secondary sub-panel.
- Equipped out of the box with a robust 100-amp, 2-pole main circuit breaker boasting a 22 kA short-circuit current rating (AIR), this convertible interior provides immediate, ultra-reliable overcurrent and short-circuit protection. It functions perfectly as a dedicated sub-panel or main service entrance device for residential homes and light commercial settings, safely interrupting catastrophic faults before they damage downstream appliances or electronics
- Built with high-conductivity, tin-plated copper busbars that are fully shielded to maximize worker safety during routine maintenance, this panelboard provides low-resistance electrical pathways. The specialized plating strongly resists the oxidation and terminal overheating common with lower-grade aluminum bus designs, ensuring stable 120/240V power delivery and long-term system reliability
- This indoor-rated, welded sheet steel load center includes a grey baked-enamel combination cover engineered for both flush-mount drywall installations and surface-mount basement walls. The split neutral bars allow for exceptionally tidy, code-compliant wire routing, while factory-backed out screws on the ground and neutral terminals let residential electricians hook up branch lines and pass strict CSA electrical inspections in record time.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth95 mm
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- EU, LC
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Cover Type
- combination flush/surface cover
- Enclosure Material
- welded sheet steel
- Installation Direction
- vertical
- Material
- tin plated copper: busbar
- Number Of Spaces
- 40
- Phase
- 1 phase
- Product Or Component Type
- Load Center
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 858 mm
- Certificate Agency
- CSA
- Short-circuit Current
- 22 kA
- Package Weight(Lbs)
- 15.65 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor
Local Publishable Date2026-07-14
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium
Electrical Connectionlugs
Energy Efficiency OptimizedFalse
Load Center TypePoN Convertible Mains (breaker)
Number Of Circuits54
Number Of Tandem Circuit Breakers14
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Surface Finishbaked enamel Gray
Tightening TorqueCover 20 lb.in
Pep CodeENVPEP2212001EN
Width Nominal362 mm
[Ue] Rated Operational Voltage240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109150
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Environmental DisclosureENVPEP2212001EN
Nema Degree Of ProtectionNEMA 1 indoor enclosure
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2212001EN
General Attributes
- Phase
- 1 phase
- Range Of Product
- QO
Product Or Component TypeLoad Center
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
