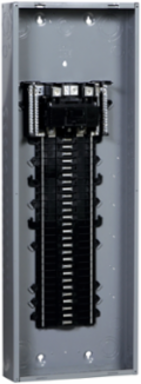

Square D CQO132L125PGC Loadcentre, QO, 1 phase, 32 spaces, 53 circuits, 125A main lugs, PoN, NEMA1, gnd bar, combo cover, CSA
Square D CQO132L125PGC Loadcentre, QO, 1 phase, 32 spaces, 53 circuits, 125A main lugs, PoN, NEMA1, gnd bar, combo cover, CSA
- MPN: CQO132L125PGC
- UPC: 785901971412
- PPN: SCH-CQO132L125PGC
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$159.52/ EA
Description
QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 32 spaces and 53 circuits. This system provides 125A main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, combination cover, and is CSA rated.
Specifications
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212001
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Complementary
- Height
- 661 mm
- Tightening Torque
- main lugs 50 lb.in, AWG 6...AWG 2/0, aluminum/copper
- [In] Rated Current
- 125 A
- Depth
- 95 mm
- Number Of Spaces
- 32
- Device Composition
- grounding bar included (not installed)
Short-Circuit Current65 kA
[Ue] Rated Operational Voltage240 V AC
Width362 mm
Number Of Circuits53
Loadcentre TypePoN Convertible Mains (lugs)
Network Number Of Phases1 phase
Specifications
- Cover Type
- combination flush/surface cover
- Product Or Component Type
- Loadcentre
Range Of ProductQO
